RC4169.0
RC4169.0
RC4169.0

RC4169.0

UGC DOR8904126
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$566.50 CAD - $566.50 CAD
$566.50 CAD
$566.50 CAD - $566.50 CAD
$566.50 CAD

Vendu en lots de : 1

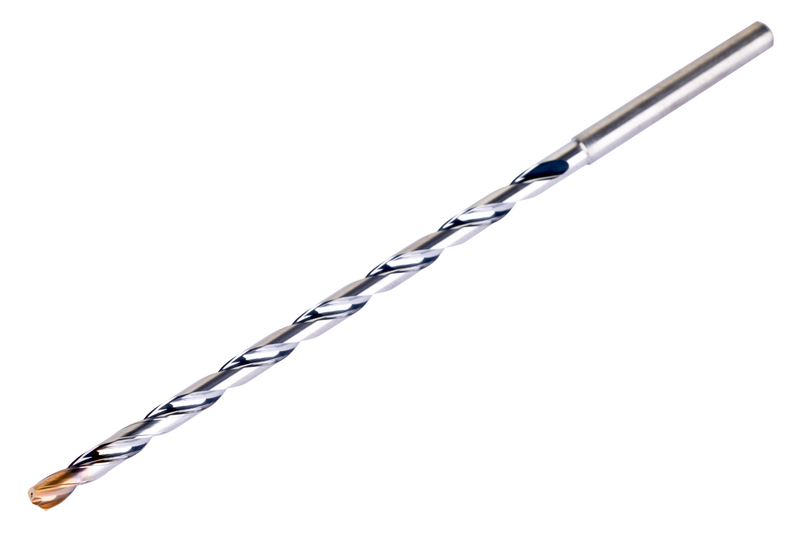

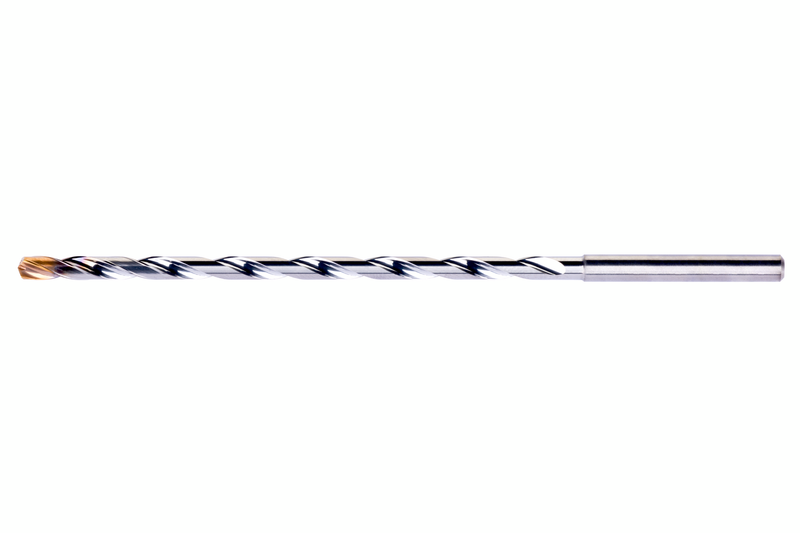

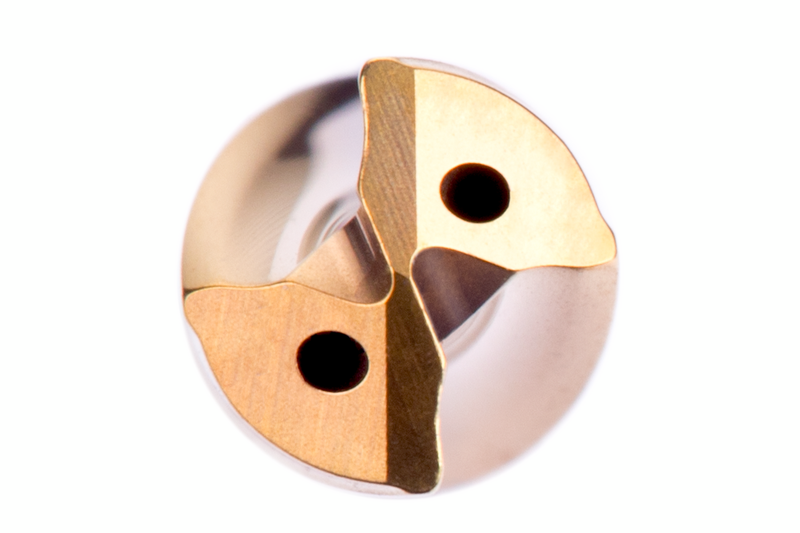

Foret haute performance pour trous profonds, de diamètre de coupe de 9 mm, avec un angle de pointe de 140° et une âme affûtée optimisée, permettant de percer jusqu'à 16xD sans débourrage. DCON MS 10 mm, LCF 162 mm et OAL 206 mm. Le revêtement multicouche Nano-Tip offre une stabilité thermique et une résistance à l'usure supérieures pour une durée de vie accrue de l'outil. Les canaux de lubrification internes assurent une efficacité de refroidissement améliorée.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4169.0
Product Number8904126
Product FamilyRC416
Dimensions
Cutting Diameter — in (DC)0.354"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)8.11"
Overall Length — mm (OAL)206.0 mm
Flute Length — in (LCF)6.378"
Flute Length — mm (LCF)162.0 mm
Functional Length — in (LF)5.827"
Functional Length — mm (LF)148.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904126
EAN3603607352359
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC4169.0 — 3D Model STP Download
RC4169.0 — 2D Model DXF Download
RC4169.0 — Line Drawing PDF Download
