RC41612.7
RC41612.7
RC41612.7

RC41612.7

UGC DOR8904138
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,050.50 CAD - $1,050.50 CAD
$1,050.50 CAD
$1,050.50 CAD - $1,050.50 CAD
$1,050.50 CAD

Vendu en lots de : 1

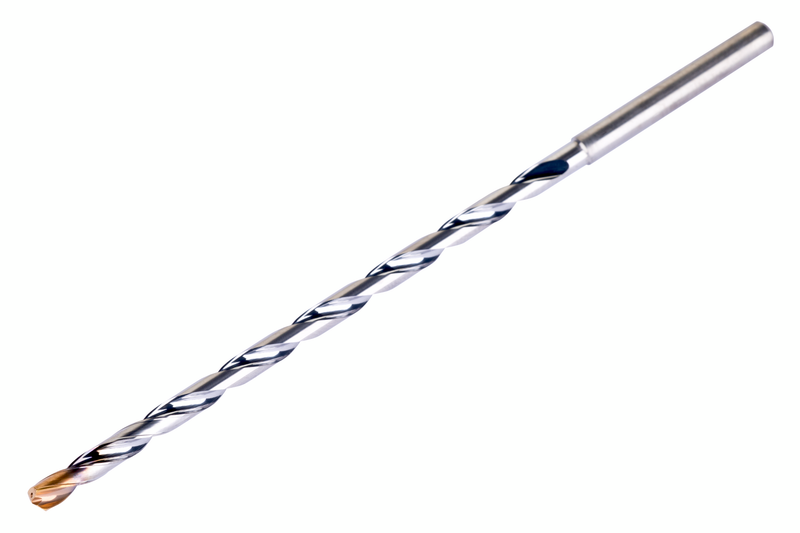

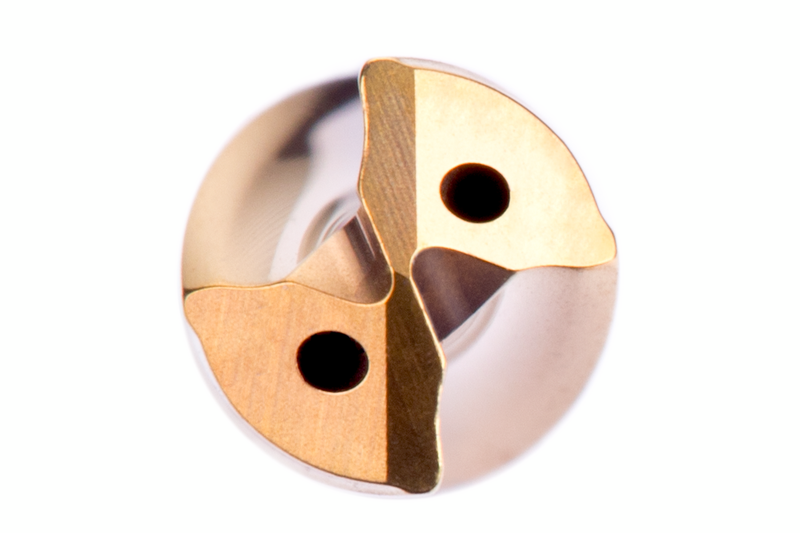

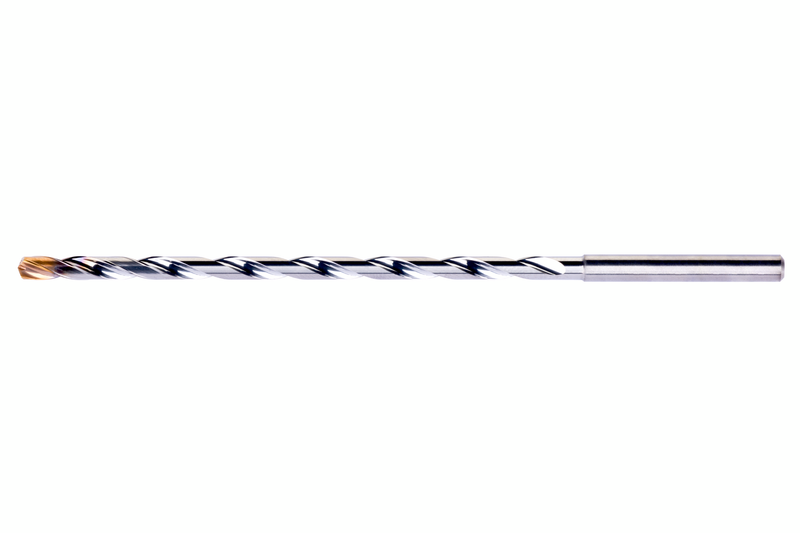

Foret à haut rendement pour trous profonds de 12,7 mm de diamètre de coupe, doté d'un angle de pointe de 140° et d'une âme amincie optimisée, permettant un perçage jusqu'à 16xD sans débourrage. DCON MS 14 mm, LCF 252 mm et OAL 301 mm. Le revêtement multicouche Nano-Tip offre une stabilité thermique et une résistance à l'usure supérieures pour une durée de vie prolongée de l'outil. Les canaux d'arrosage internes améliorent l'efficacité du refroidissement.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC41612.7
Product Number8904138
Product FamilyRC416
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Overall Length — in (OAL)11.85"
Overall Length — mm (OAL)301.0 mm
Flute Length — in (LCF)9.921"
Flute Length — mm (LCF)252.0 mm
Functional Length — in (LF)9.37"
Functional Length — mm (LF)238.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904138
EAN3603607352472
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC41612.7 — 3D Model STP Download
RC41612.7 — 2D Model DXF Download
RC41612.7 — Line Drawing PDF Download
