RC41616.0
RC41616.0
RC41616.0

RC41616.0

UGC DOR8904143
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,374.21 CAD - $1,374.21 CAD
$1,374.21 CAD
$1,374.21 CAD - $1,374.21 CAD
$1,374.21 CAD

Vendu en lots de : 1

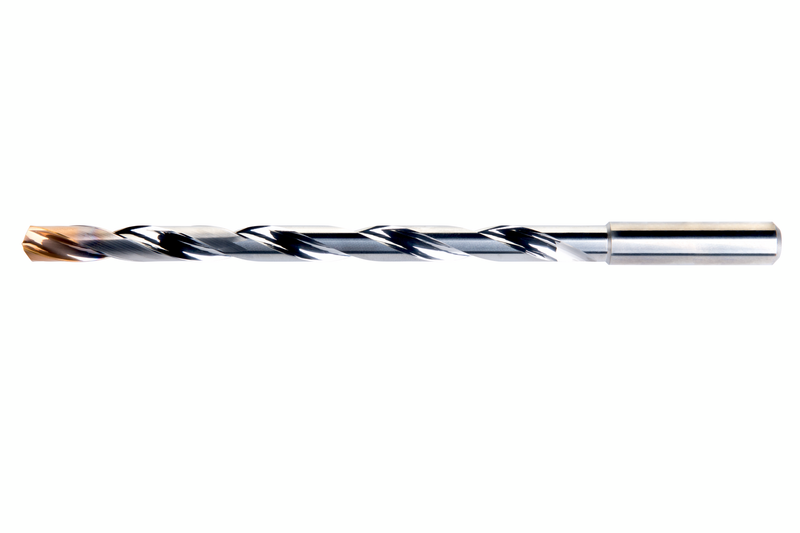

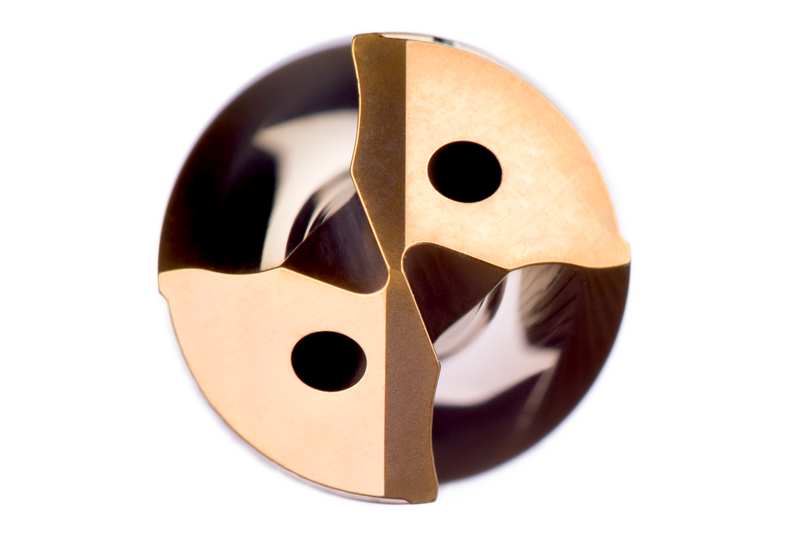

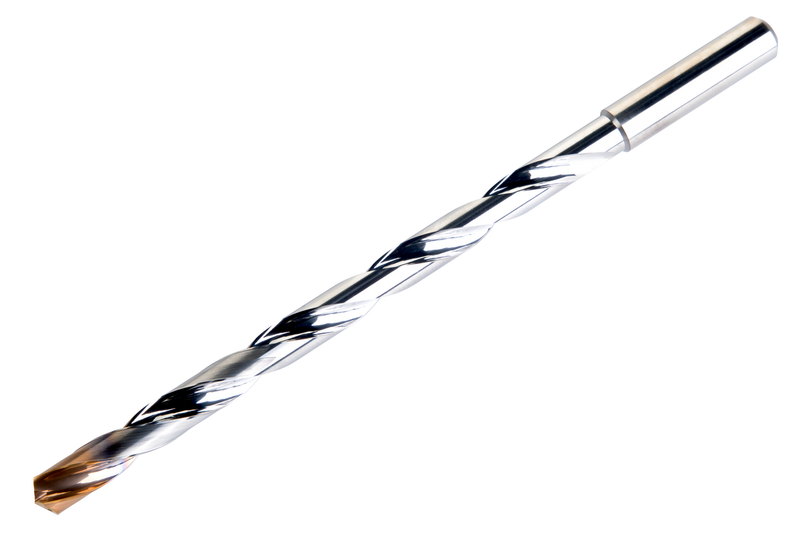

Foret haute performance à trou profond de diamètre de coupe de 16 mm, doté d'un angle de pointe de 140° et d'un design d'âme aminci optimisé, permettant un perçage jusqu'à 16xD sans débourrage. Queue cylindrique avec DCON MS de 16 mm, LCF de 288 mm et OAL de 340 mm. Le revêtement multicouche Nano-Tip offre une stabilité thermique et une résistance à l'usure supérieures pour une durée de vie prolongée de l'outil. Les canaux de refroidissement internes assurent une efficacité de refroidissement améliorée.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC41616.0
Product Number8904143
Product FamilyCR416
Dimensions
Cutting Diameter — in (DC)0.63"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)13.386"
Overall Length — mm (OAL)340.0 mm
Flute Length — in (LCF)11.339"
Flute Length — mm (LCF)288.0 mm
Functional Length — in (LF)10.709"
Functional Length — mm (LF)272.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904143
EAN3603607352526
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC41616.0 — 3D Model STP Download
RC41616.0 — 2D Model DXF Download
RC41616.0 — Line Drawing PDF Download
