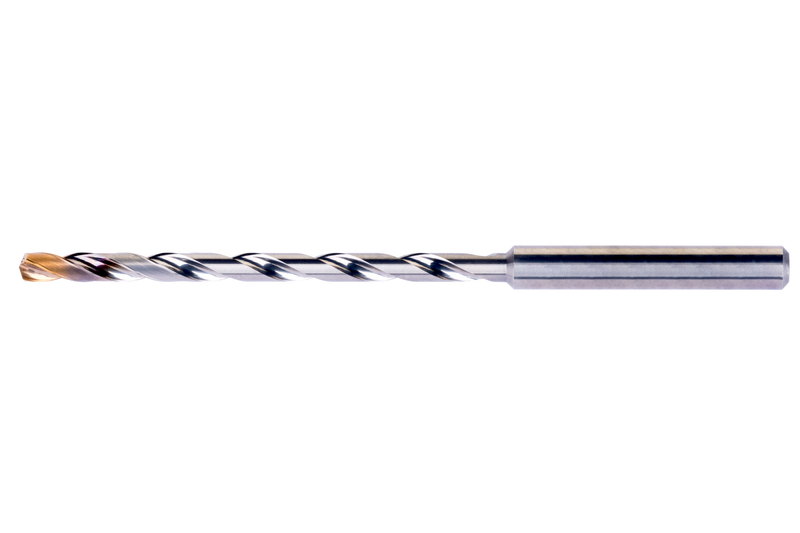

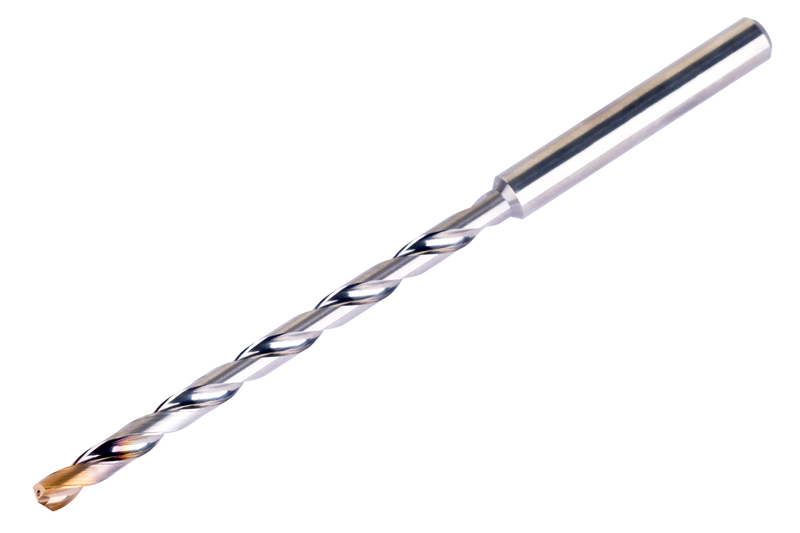

RC4209/64
RC4209/64
RC4209/64

RC4209/64

UGC DOR8904147
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$429.79 CAD - $429.79 CAD
$429.79 CAD
$429.79 CAD - $429.79 CAD
$429.79 CAD

Vendu en lots de : 1

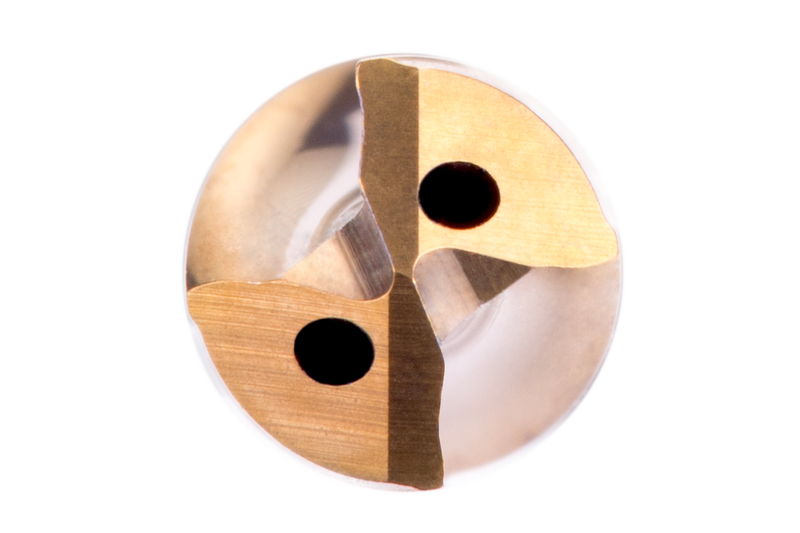

Foret à trous profonds haute performance d'un diamètre de coupe de 9/64 pouces, avec un angle de pointe de 140° et un design d'âme aminci optimisé, permettant un perçage jusqu'à 20xD sans débourrage. DCON MS 4 mm, LCF 92 mm et OAL 124 mm. Le revêtement multicouche Nano-Tip offre une stabilité thermique et une résistance à l'usure supérieures pour une durée de vie prolongée de l'outil. Les canaux de lubrification internes assurent une efficacité de refroidissement accrue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4209/64
Product Number8904147
Product FamilyRC420
Dimensions
Cutting Diameter — in (DC)0.141"
Cutting Diameter — mm (DC)3.57 mm
Cutting Diameter — Fractional9/64
Overall Length — in (OAL)4.882"
Overall Length — mm (OAL)124.0 mm
Flute Length — in (LCF)3.622"
Flute Length — mm (LCF)92.0 mm
Functional Length — in (LF)3.386"
Functional Length — mm (LF)86.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904147
EAN3603607352564
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC4209/64 — 3D Model STP Download
RC4209/64 — 2D Model DXF Download
RC4209/64 — Line Drawing PDF Download
