RC4207.4
RC4207.4
RC4207.4

RC4207.4

UGC DOR8904165
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$574.36 CAD - $574.36 CAD
$574.36 CAD
$574.36 CAD - $574.36 CAD
$574.36 CAD

Vendu en lots de : 1

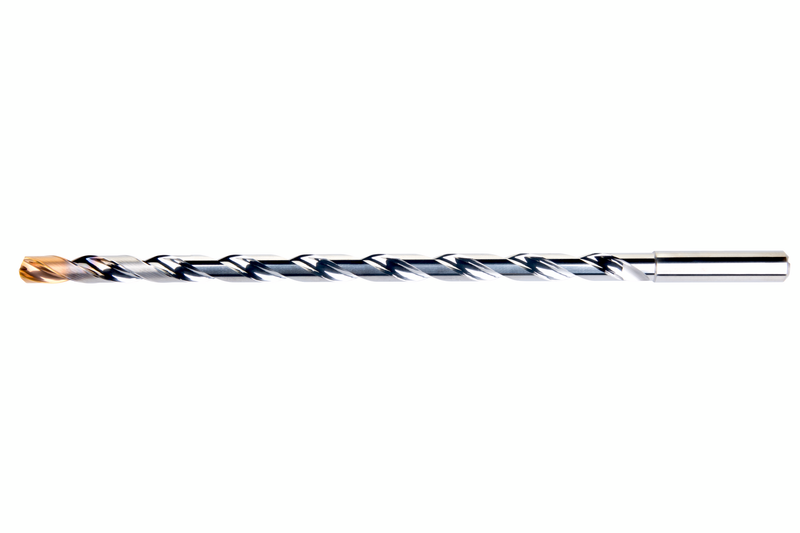

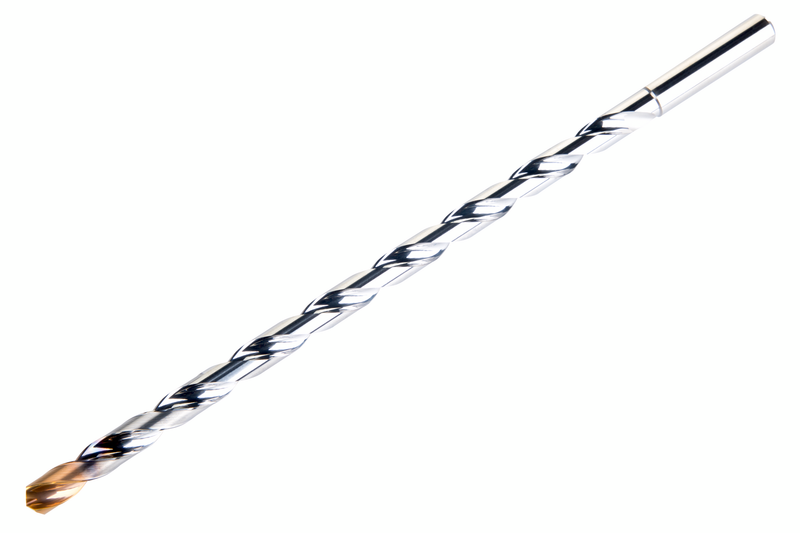

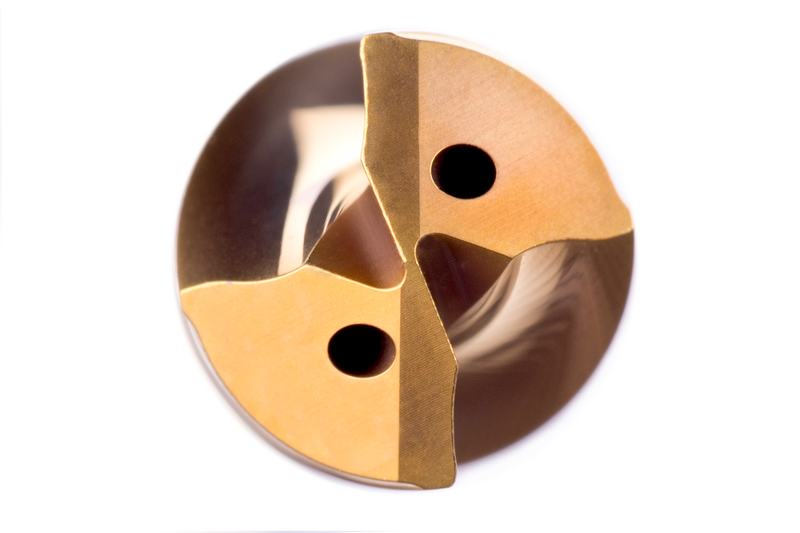

Forets profonds haute performance d'un diamètre de coupe de 7,4 mm, dotés d'un angle de pointe de 140° et d'une âme affinée optimisée, permettant un perçage jusqu'à 20xD sans débourrage. DCON MS 8 mm, LCF 184 mm et OAL 222 mm. Le revêtement multicouche Nano-Tip offre une stabilité thermique et une résistance à l'usure supérieures pour une durée de vie prolongée de l'outil. Les canaux d'arrosage internes assurent une efficacité de refroidissement accrue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4207.4
Product Number8904165
Product FamilyRC420
Dimensions
Cutting Diameter — in (DC)0.291"
Cutting Diameter — mm (DC)7.4 mm
Overall Length — in (OAL)8.74"
Overall Length — mm (OAL)222.0 mm
Flute Length — in (LCF)7.244"
Flute Length — mm (LCF)184.0 mm
Functional Length — in (LF)6.772"
Functional Length — mm (LF)172.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904165
EAN3603607352748
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC4207.4 — 3D Model STP Download
RC4207.4 — 2D Model DXF Download
RC4207.4 — Line Drawing PDF Download
