UGC DOR8904175
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$669.43 CAD - $669.43 CAD
$669.43 CAD
$669.43 CAD - $669.43 CAD
$669.43 CAD

Vendu en lots de : 1

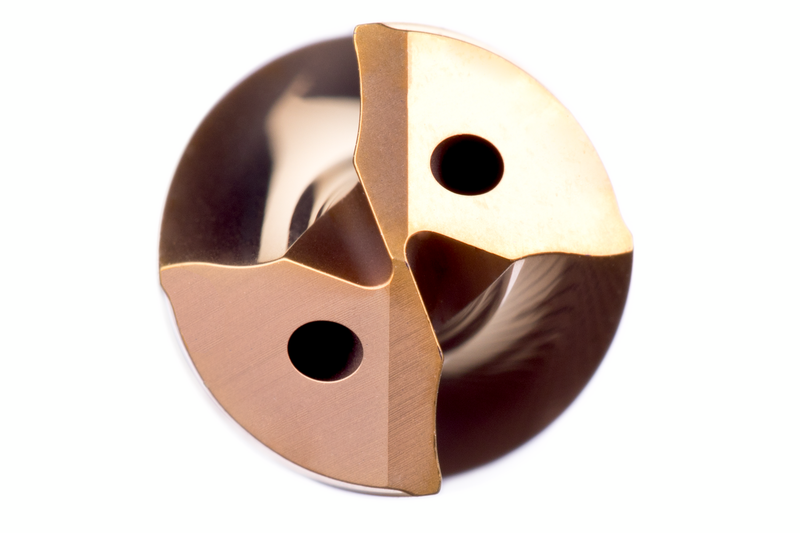

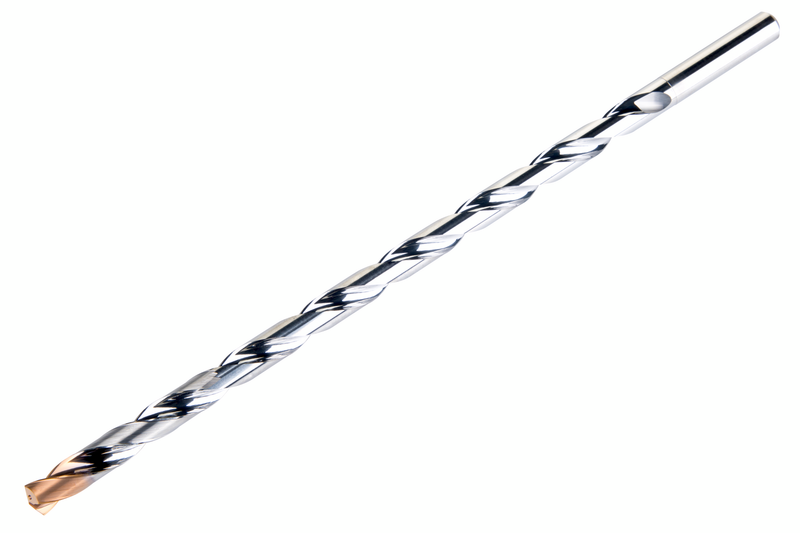

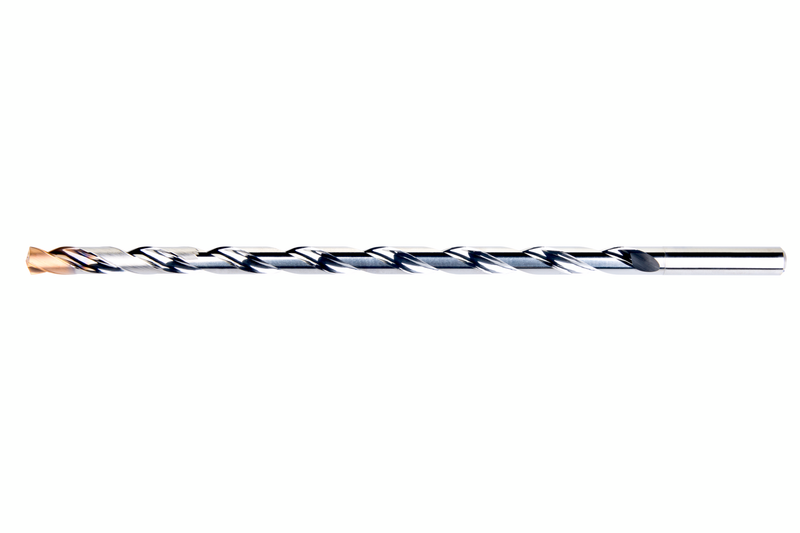

Foret haute performance à trou profond de 10 mm de diamètre de coupe, avec un angle de pointe de 140° et une conception de l'âme affinée optimisée, permettant un perçage jusqu'à 20xD sans débourrage. Queue parallèle avec DCON MS 10 mm, LCF 220 mm et OAL 262 mm. Le revêtement multicouche Nano-Tip offre une stabilité thermique et une résistance à l'usure supérieures pour une durée de vie prolongée de l'outil. Les canaux d'arrosage internes garantissent une efficacité de refroidissement améliorée.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC42010.0
Product Number8904175
Product FamilyRC420
Dimensions
Cutting Diameter — in (DC)0.394"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)10.315"
Overall Length — mm (OAL)262.0 mm
Flute Length — in (LCF)8.661"
Flute Length — mm (LCF)220.0 mm
Functional Length — in (LF)8.071"
Functional Length — mm (LF)205.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904175
EAN3603607352847
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC42010.0 — 3D Model STP Download
RC42010.0 — 2D Model DXF Download
RC42010.0 — Line Drawing PDF Download
