RC4P3.5
RC4P3.5
RC4P3.5

RC4P3.5

UGC DOR8904192
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$177.57 CAD - $177.57 CAD
$177.57 CAD
$177.57 CAD - $177.57 CAD
$177.57 CAD

Vendu en lots de : 1

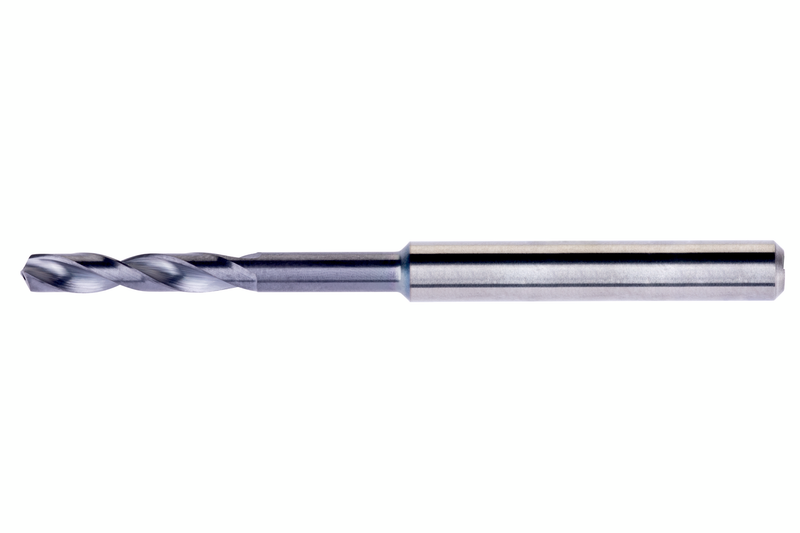

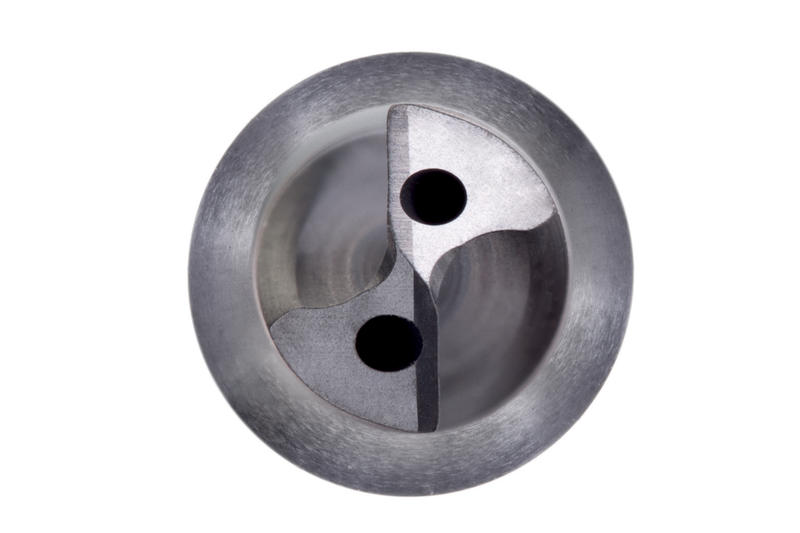

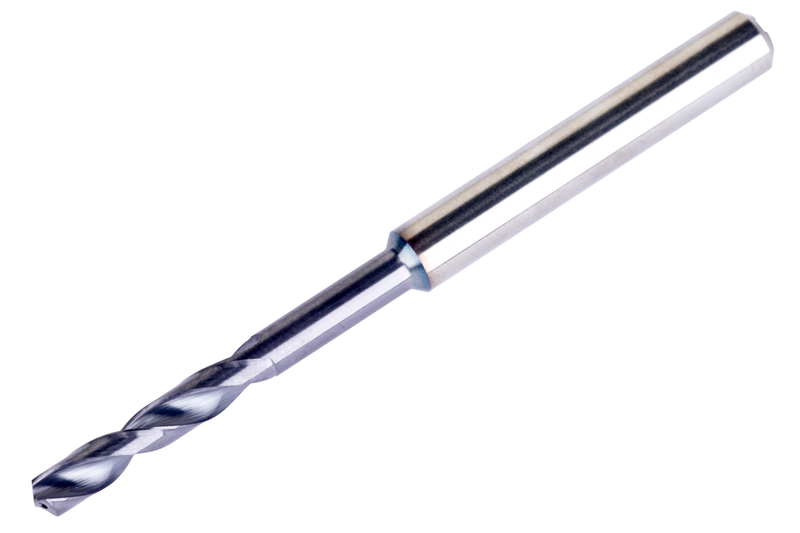

Forets pilotes de 3,5 mm de diamètre de coupe, spécialement conçus pour un positionnement précis des trous lors de l'utilisation de forets à trous profonds Force 16xD et 20xD. Dotés d'un angle de pointe de 150° et d'une tolérance de foret légèrement plus grande p7 pour un perçage précis des avant-trous jusqu'à 2xD. DCON MS 6 mm, LCF 20 mm et OAL 66 mm. Les canaux de refroidissement internes assurent une meilleure efficacité de refroidissement. Revêtement multicouche TiAlN pour minimiser la friction, adapté à divers matériaux tels que l'acier, l'acier inoxydable, la fonte et les métaux non ferreux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4P3.5
Product Number8904192
Product FamilyRC4P
Dimensions
Cutting Diameter — in (DC)0.138"
Cutting Diameter — mm (DC)3.5 mm
Overall Length — in (OAL)2.598"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)0.787"
Flute Length — mm (LCF)20.0 mm
Functional Length — in (LF)0.551"
Functional Length — mm (LF)14.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)150°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904192
EAN3603607353011
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC4P3.5 — 3D Model STP Download
RC4P3.5 — 2D Model DXF Download
RC4P3.5 — Line Drawing PDF Download
