RC4P6.5
RC4P6.5
RC4P6.5

RC4P6.5

UGC DOR8904206
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$212.93 CAD - $212.93 CAD
$212.93 CAD
$212.93 CAD - $212.93 CAD
$212.93 CAD

Vendu en lots de : 1

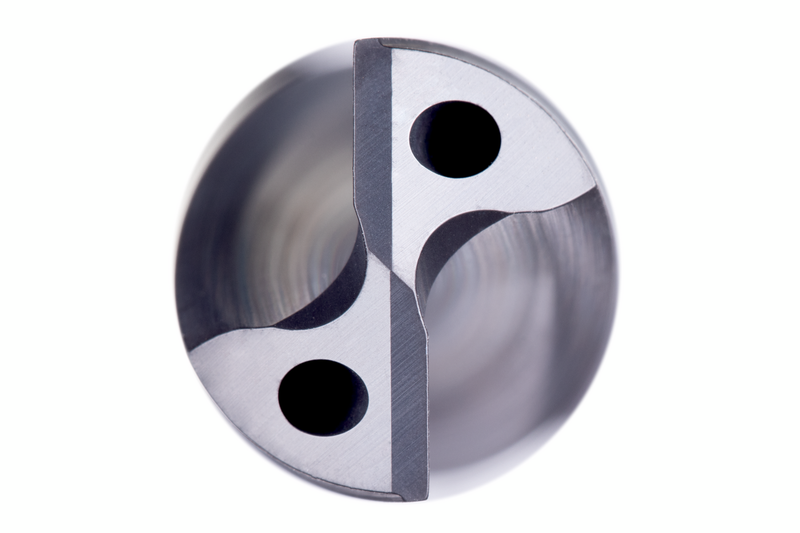

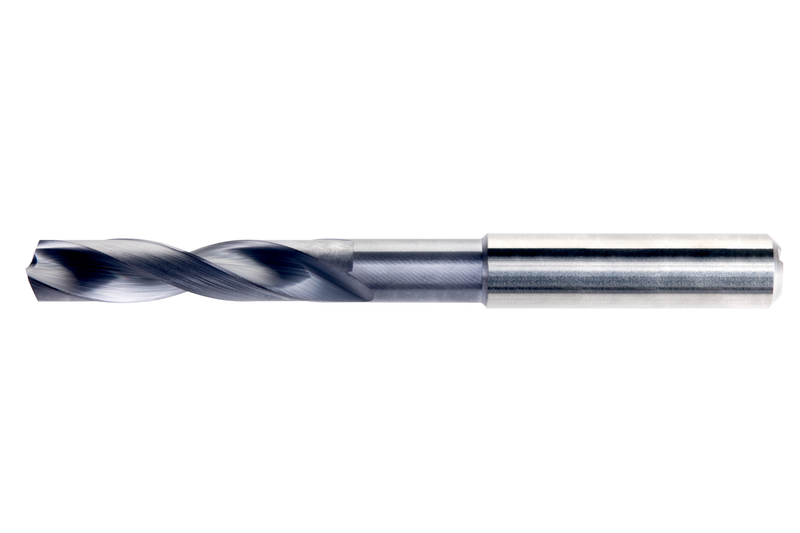

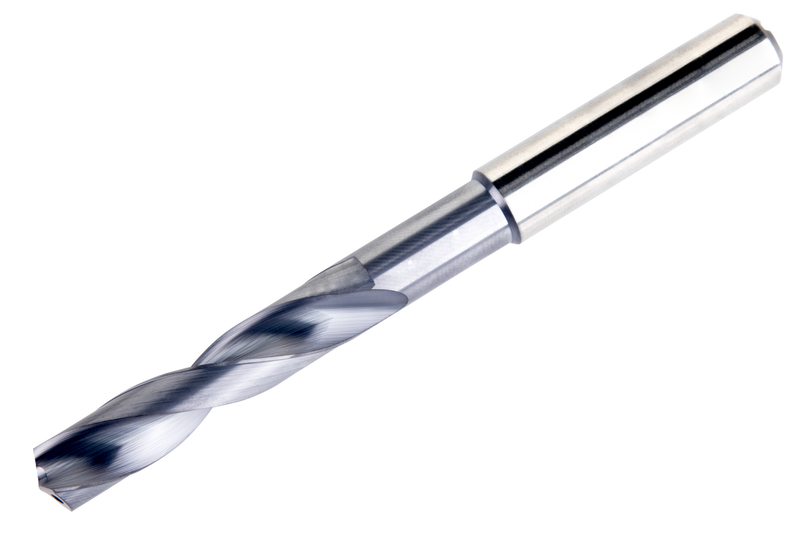

Foret pilote de diamètre de coupe 6,5 mm spécialement conçu pour un positionnement précis des trous lors de l'utilisation de forets de perçage profond Force 16xD et 20xD. Caractéristiques d'un angle de pointe de 150° et d'une tolérance de foret légèrement plus grande p7 pour un perçage précis des avant-trous jusqu'à 2xD. DCON MS 8 mm, LCF 34 mm et OAL 91 mm. Les canaux de refroidissement internes offrent une efficacité de refroidissement améliorée. Revêtement multicouche TiAlN pour minimiser le frottement, adapté à divers matériaux comme l'acier, l'acier inoxydable, la fonte et les métaux non ferreux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4P6.5
Product Number8904206
Product FamilyRC4P
Dimensions
Cutting Diameter — in (DC)0.256"
Cutting Diameter — mm (DC)6.5 mm
Overall Length — in (OAL)3.583"
Overall Length — mm (OAL)91.0 mm
Flute Length — in (LCF)1.339"
Flute Length — mm (LCF)34.0 mm
Functional Length — in (LF)0.906"
Functional Length — mm (LF)23.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)150°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904206
EAN3603607353158
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC4P6.5 — 3D Model STP Download
RC4P6.5 — 2D Model DXF Download
RC4P6.5 — Line Drawing PDF Download
