RC4P8.0
RC4P8.0
RC4P8.0

RC4P8.0

UGC DOR8904213
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$212.93 CAD - $212.93 CAD
$212.93 CAD
$212.93 CAD - $212.93 CAD
$212.93 CAD

Vendu en lots de : 1

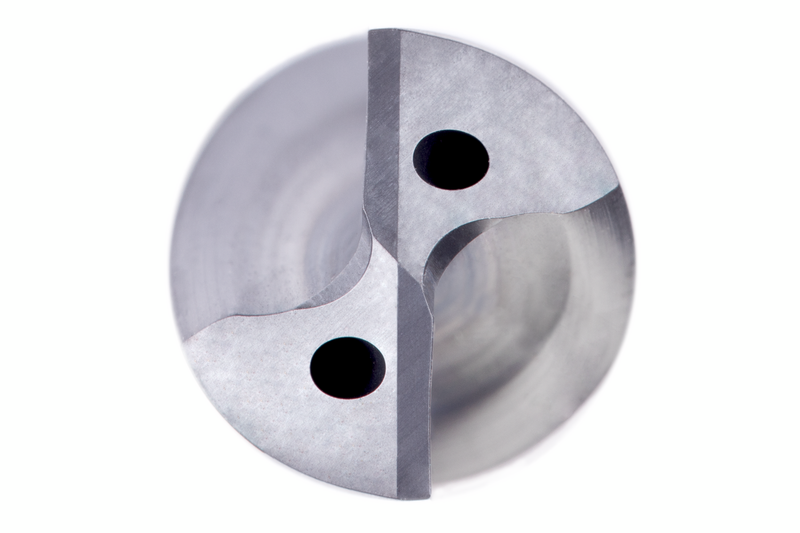

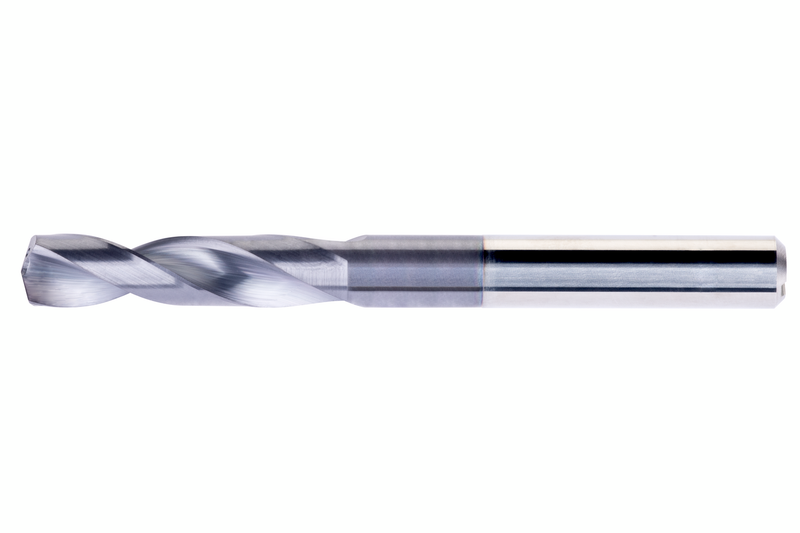

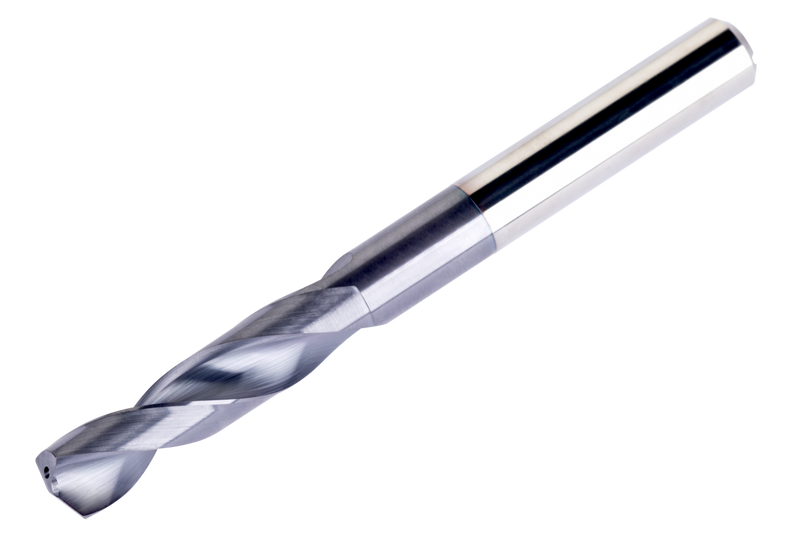

Foret pilote avec diamètre de coupe de 8 mm spécialement conçu pour un positionnement précis des trous lors de l'utilisation des forets à trous profonds Force 16xD et 20xD. Doté d'un angle de pointe de 150° et d'une tolérance de perçage légèrement plus grande p7 pour un perçage précis des avant-trous jusqu'à 2xD. Queue cylindrique avec DCON MS 8 mm, LCF 41 mm et OAL 91 mm. Les canaux de lubrification internes assurent une efficacité de refroidissement accrue. Revêtement multicouche TiAlN pour minimiser la friction, adapté à divers matériaux tels que l'acier, l'acier inoxydable, la fonte et les métaux non ferreux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4P8.0
Product Number8904213
Product FamilyRC4P
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)3.583"
Overall Length — mm (OAL)91.0 mm
Flute Length — in (LCF)1.614"
Flute Length — mm (LCF)41.0 mm
Functional Length — in (LF)1.142"
Functional Length — mm (LF)29.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)150°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904213
EAN3603607353226
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC4P8.0 — 3D Model STP Download
RC4P8.0 — 2D Model DXF Download
RC4P8.0 — Line Drawing PDF Download
