RC4P7/16
RC4P7/16
RC4P7/16

RC4P7/16

UGC DOR8904224
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$339.43 CAD - $339.43 CAD
$339.43 CAD
$339.43 CAD - $339.43 CAD
$339.43 CAD

Vendu en lots de : 1

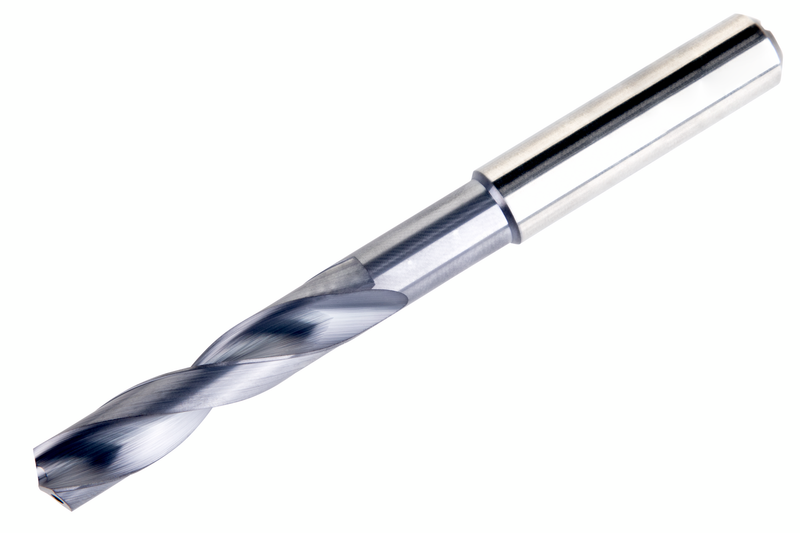

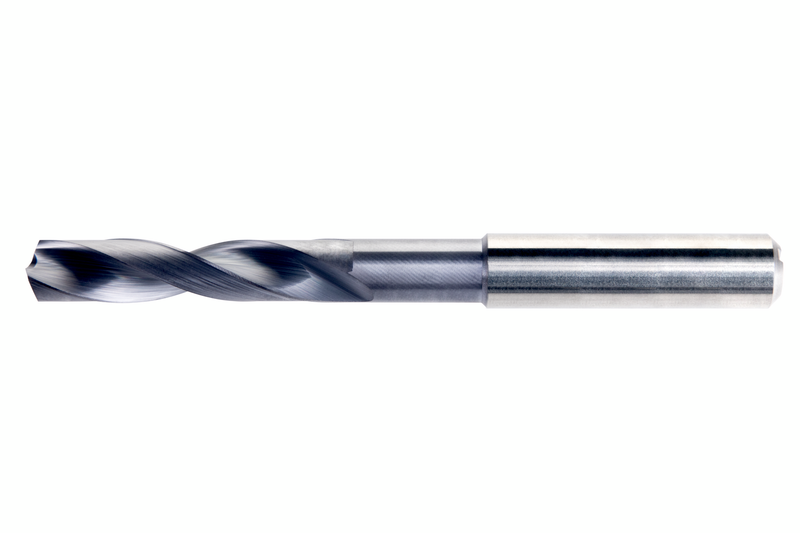

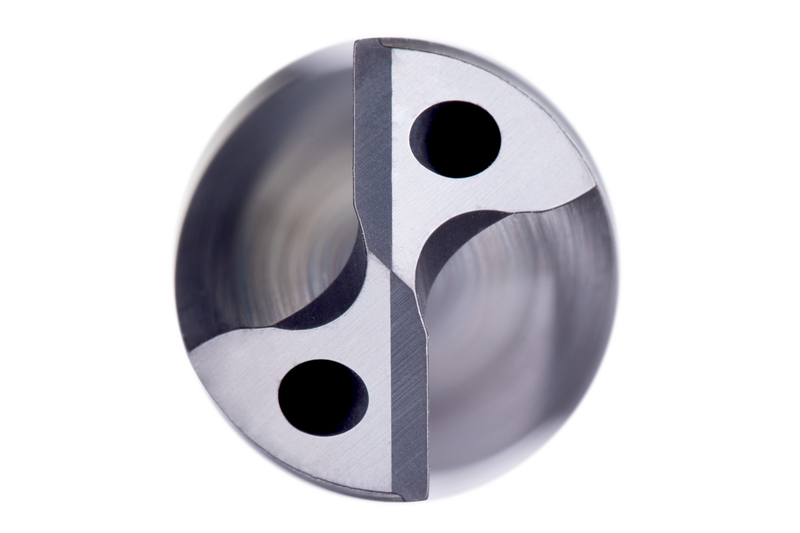

Diamètre de coupe 7/16 pouces, foret pilote spécialement conçu pour un positionnement précis des trous lors de l'utilisation des forets à trous profonds Force 16xD et 20xD. Doté d'un angle de pointe de 150° et d'une tolérance de foret légèrement plus grande p7 pour un perçage précis des trous pilotes jusqu'à 2xD. DCON MS 12 mm, LCF 55 mm et LHT 118 mm. Des canaux d'arrosage internes assurent une meilleure efficacité de refroidissement. Revêtement multicouche TiAlN pour minimiser le frottement, adapté à divers matériaux tels que l'acier, l'acier inoxydable, la fonte et les métaux non ferreux.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC4P7/16
Product Number8904224
Product FamilyRC4P
Dimensions
Cutting Diameter — in (DC)0.438"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — in (OAL)4.646"
Overall Length — mm (OAL)118.0 mm
Flute Length — in (LCF)2.165"
Flute Length — mm (LCF)55.0 mm
Functional Length — in (LF)1.457"
Functional Length — mm (LF)37.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Drill Point Angle (SIG)150°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6535
Reference Numbers
EDP Number8904224
EAN3603607353332
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
RC4P7/16 — 3D Model STP Download
RC4P7/16 — 2D Model DXF Download
RC4P7/16 — Line Drawing PDF Download
