A08H-SCLCR 06-A
A08H-SCLCR 06-A
A08H-SCLCR 06-A
A08H-SCLCR 06-A

A08H-SCLCR 06-A

UGC DOR8998323
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$209.00 CAD - $209.00 CAD
$209.00 CAD
$209.00 CAD - $209.00 CAD
$209.00 CAD

Vendu en lots de : 1

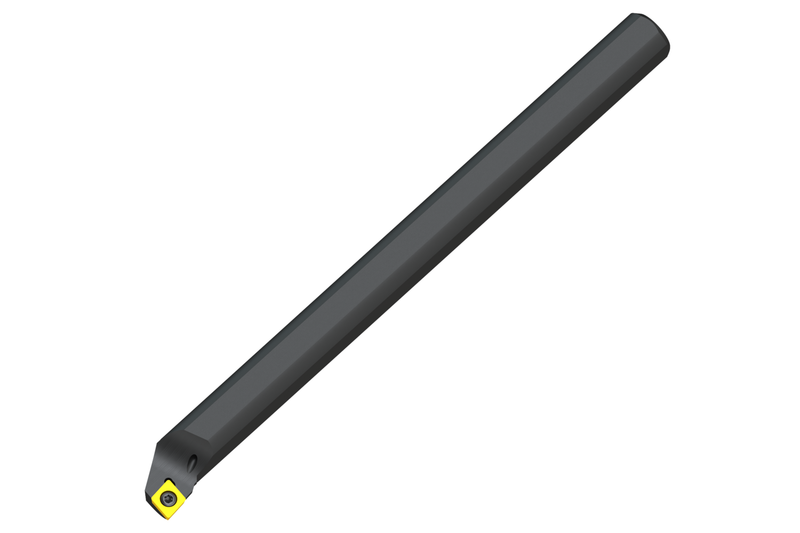

Outil de tournage intérieur A08H-SCLCR 06-A. Corps en acier. Opérations d'alésage. Tournage longitudinal. Capacité de coupe latérale et frontale. Convient à l'usinage avec et sans épaulement. Pour les applications générales d'usinage interne.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A08H-SCLCR 06-A
Product Number8998323
Product FamilySCLC(AR) INT
Insert Geometry
Cutting Tool Angle (KAPR)95°

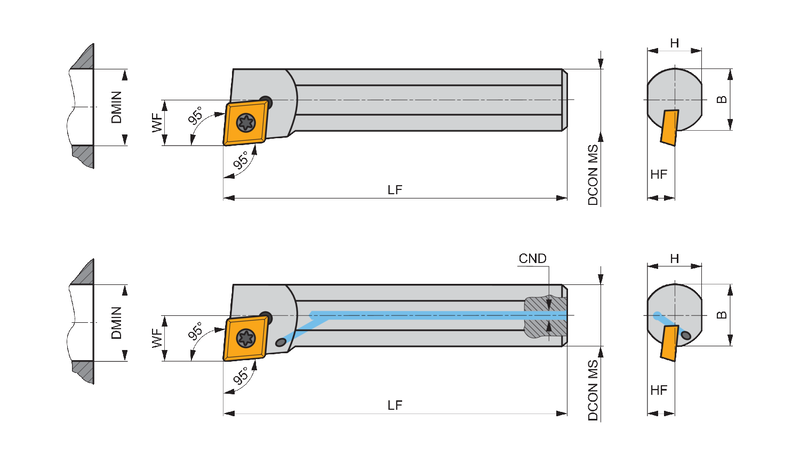

Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Shank Height — mm (H)7.0 mm
Min. Bore Dia. — in (DMIN)0.394"
Tool Information
Tool DesignCC
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8998323
EAN3603604794053
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
A08H-SCLCR 06-A — 3D Model STP Download
A08H-SCLCR 06-A — 2D Model DXF Download
A08H-SCLCR 06-A — Line Drawing PDF Download
