A10K-SCLCL 06
A10K-SCLCL 06
A10K-SCLCL 06
A10K-SCLCL 06

A10K-SCLCL 06

UGC DOR8922972
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$209.00 CAD - $209.00 CAD
$209.00 CAD
$209.00 CAD - $209.00 CAD
$209.00 CAD

Vendu en lots de : 1

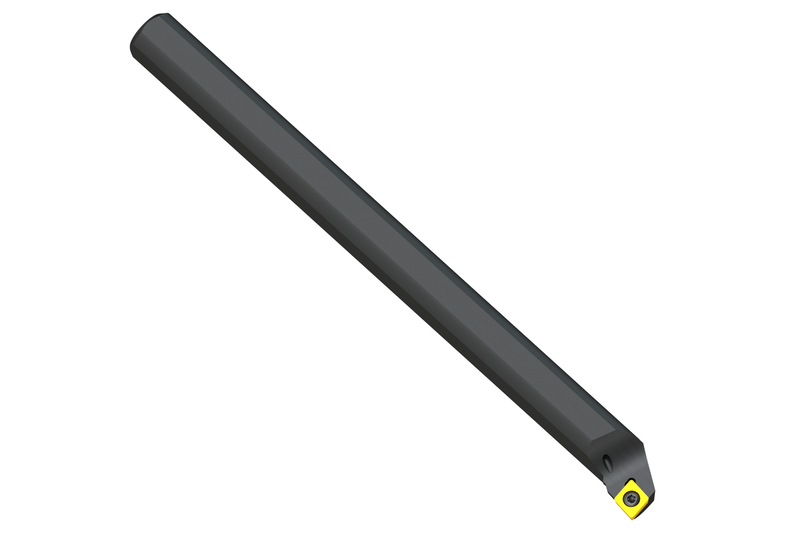

Outil de tournage intérieur A10K-SCLCL 06. Corps en acier. Opérations d'alésage. Tournage longitudinal. Capacités de coupe latérale et frontale. Convient à l'usinage avec et sans épaulement. Pour les applications générales d'usinage intérieur.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A10K-SCLCL 06
Product Number8922972
Product FamilyCPPC(RL) INT
Insert Geometry
Cutting Tool Angle (KAPR)95°

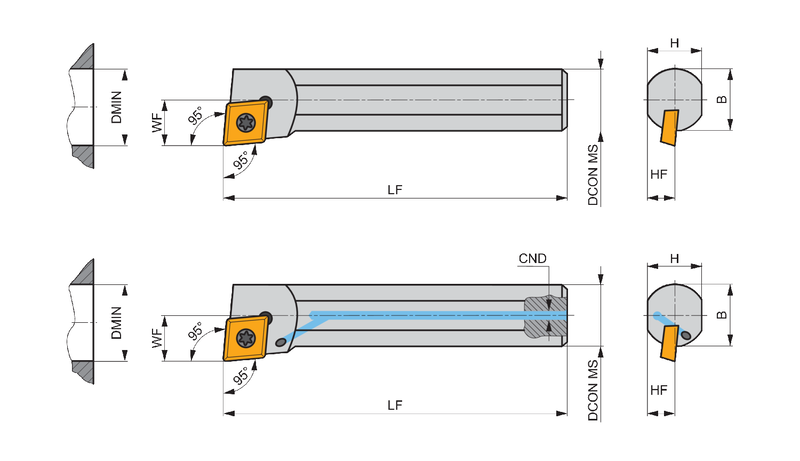

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Connection Dia. — in (DCON)0.394"
Connection Dia. — mm (DCON)10.0 mm
Shank Height — mm (H)9.0 mm
Min. Bore Dia. — in (DMIN)0.472"
Tool Information
Tool DesignCC
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number8922972
EAN3603604720137
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
A10K-SCLCL 06 — 3D Model STP Download
A10K-SCLCL 06 — 2D Model DXF Download
A10K-SCLCL 06 — Line Drawing PDF Download
