A16R-SCLCL 09
A16R-SCLCL 09
A16R-SCLCL 09
A16R-SCLCL 09

A16R-SCLCL 09

UGC DOR8922975
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$209.00 CAD - $209.00 CAD
$209.00 CAD
$209.00 CAD - $209.00 CAD
$209.00 CAD

Vendu en lots de : 1

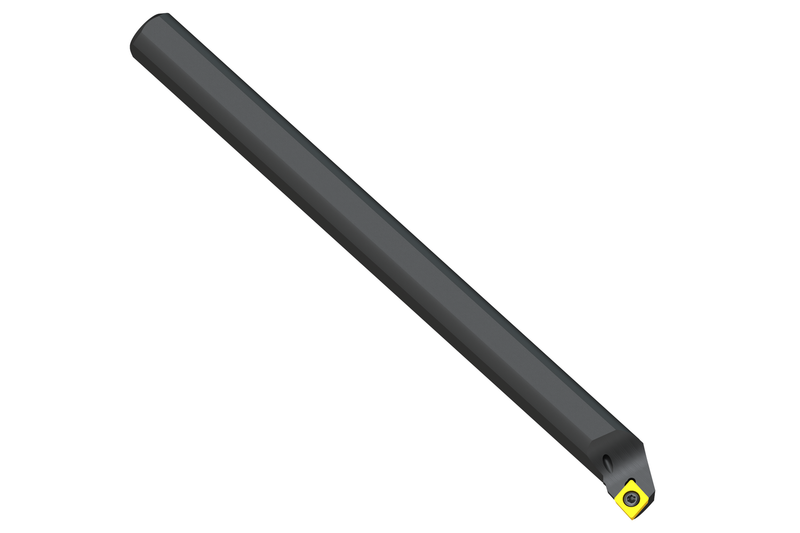

A16R-SCLCL 09 Outil de tournage interne. Corps en acier. Opérations d'alésage. Tournage longitudinal. Capacité de coupe latérale et frontale. Convient à l'usinage avec et sans épaulement. Pour les applications générales d'usinage interne.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A16R-SCLCL 09
Product Number8922975
Product FamilySCLC(RL) INT
Insert Geometry
Cutting Tool Angle (KAPR)95°

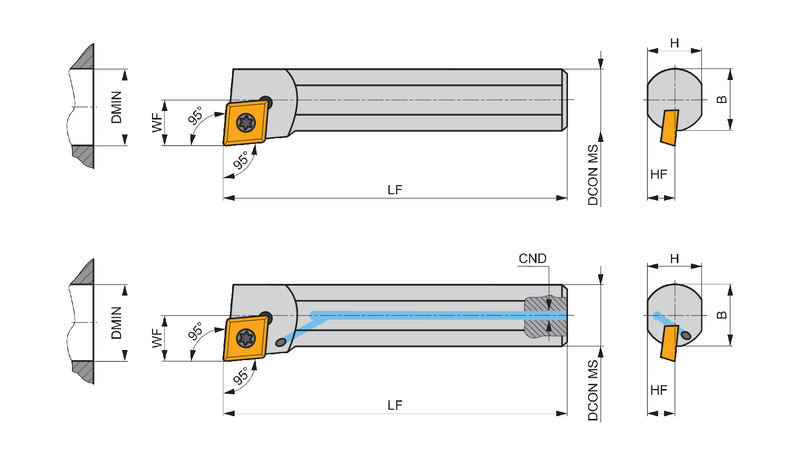

Dimensions
Functional Length — in (LF)7.874"
Functional Length — mm (LF)200.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)15.0 mm
Min. Bore Dia. — in (DMIN)0.787"
Tool Information
Tool DesignCC
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number8922975
EAN3603604720168
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
A16R-SCLCL 09 — 3D Model STP Download
A16R-SCLCL 09 — 2D Model DXF Download
A16R-SCLCL 09 — Line Drawing PDF Download
