UGC DOR8922990
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$259.00 CAD - $259.00 CAD
$259.00 CAD
$259.00 CAD - $259.00 CAD
$259.00 CAD

Vendu en lots de : 1

A20S-SDQCR 11 Outil de tournage interne. Corps en acier. Opérations d'alésage. Tournage longitudinal. Capacité de coupe latérale et frontale. Convient pour l'usinage avec et sans épaulement. Pour les applications générales d'usinage interne.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20S-SDQCR 11
Product Number8922990
Product FamilySDQC(RL) INT

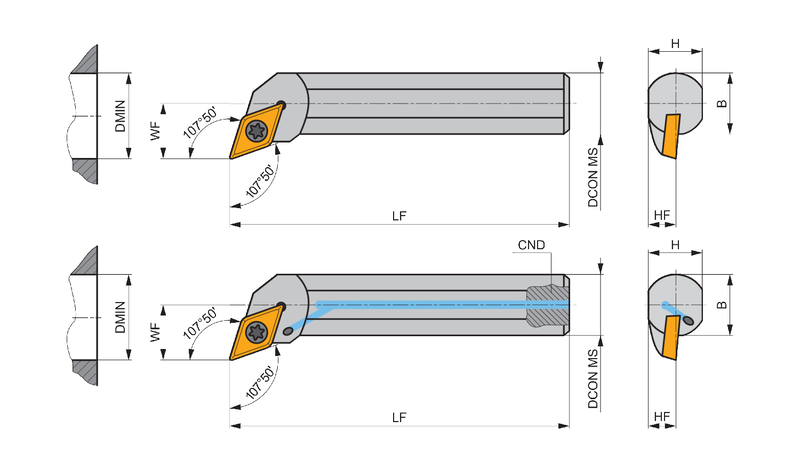

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)18.0 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Tool DesignCC
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8922990
EAN3603604720311
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
A20S-SDQCR 11 — 3D Model STP Download
A20S-SDQCR 11 — 2D Model DXF Download
A20S-SDQCR 11 — Line Drawing PDF Download
