UGC DOR8923000
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$259.00 CAD - $259.00 CAD
$259.00 CAD
$259.00 CAD - $259.00 CAD
$259.00 CAD

Vendu en lots de : 1

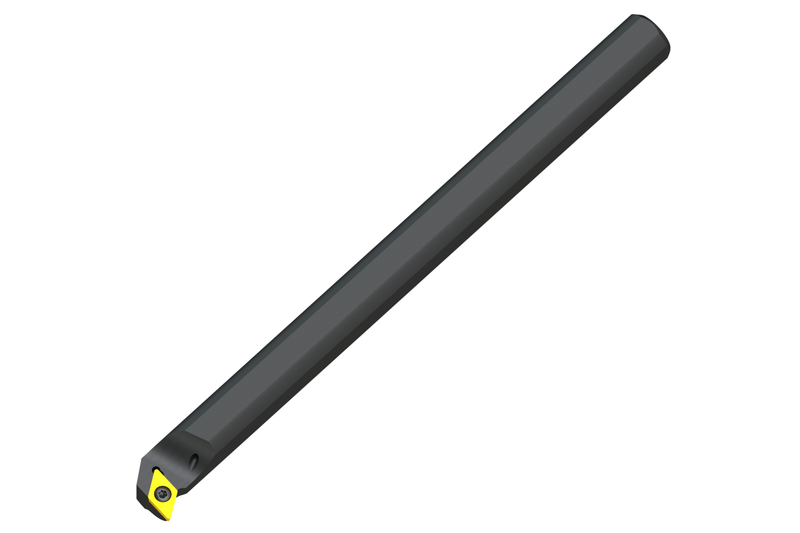

Outil de tournage interne A20S-SDUCR 11. Corps en acier. Opérations d'alésage. Tournage longitudinal. Capacité de coupe latérale et frontale. Convient à l'usinage avec et sans épaulement. Pour les applications générales d'usinage interne.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20S-SDUCR 11
Product Number8923000
Product FamilySDUC(RL) INT
Insert Geometry
Cutting Tool Angle (KAPR)93°

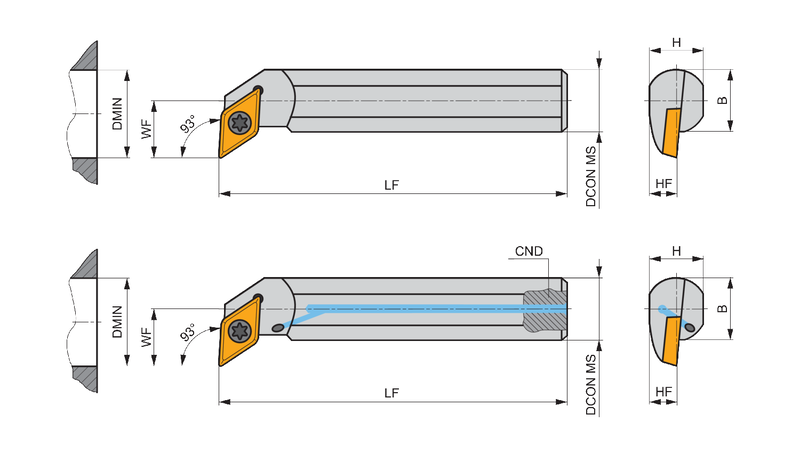

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)18.0 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Tool DesignCC
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8923000
EAN3603604720410
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
A20S-SDUCR 11 — 3D Model STP Download
A20S-SDUCR 11 — 2D Model DXF Download
A20S-SDUCR 11 — Line Drawing PDF Download
