A20S-STFCR 11-A
A20S-STFCR 11-A
A20S-STFCR 11-A
A20S-STFCR 11-A

A20S-STFCR 11-A

UGC DOR8998329
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$259.00 CAD - $259.00 CAD
$259.00 CAD
$259.00 CAD - $259.00 CAD
$259.00 CAD

Vendu en lots de : 1

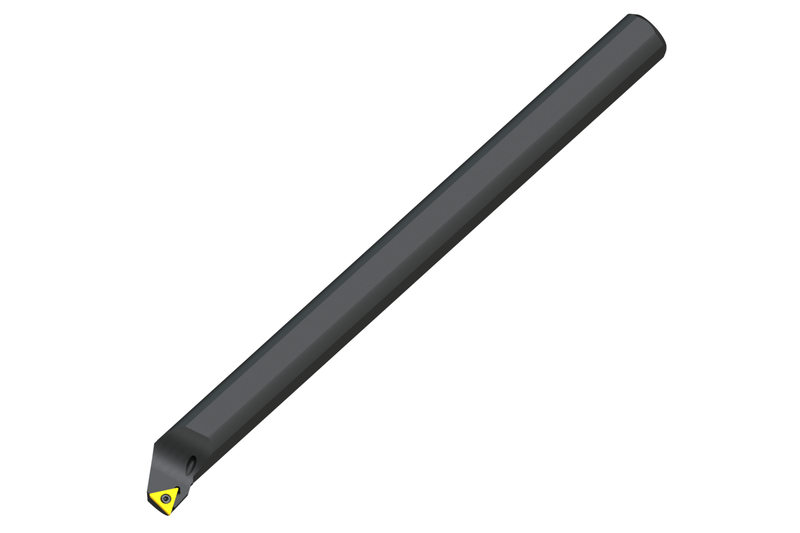

A20S-STFCR 11-A Outil de tournage intérieur. Corps en acier. Opérations d'alésage. Tournage longitudinal. Capacité de coupe latérale et frontale. Convient pour l'usinage avec et sans épaulement. Pour les applications générales d'usinage intérieur.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20S-STFCR 11-A
Product Number8998329
Product FamilySTFC (RL) INT
Insert Geometry
Cutting Tool Angle (KAPR)91°

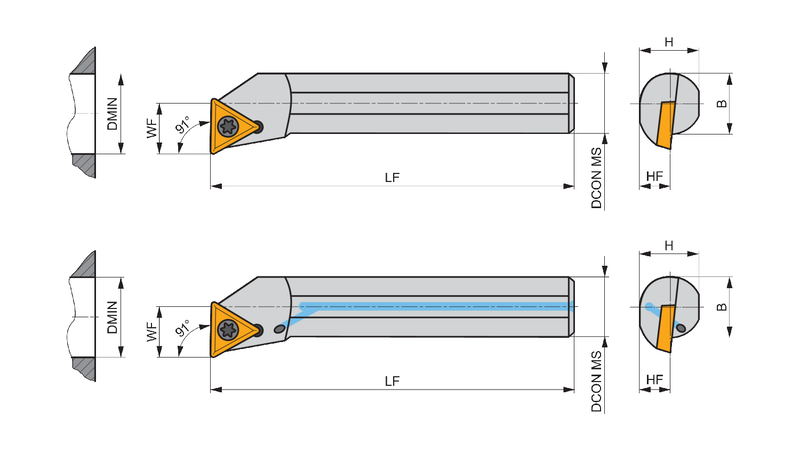

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)18.0 mm
Min. Bore Dia. — in (DMIN)0.984"
Tool Information
Tool DesignCT
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8998329
EAN3603604794114
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
A20S-STFCR 11-A — 3D Model STP Download
A20S-STFCR 11-A — 2D Model DXF Download
A20S-STFCR 11-A — Line Drawing PDF Download
