A25T-SCLCL 09
A25T-SCLCL 09
A25T-SCLCL 09
A25T-SCLCL 09

A25T-SCLCL 09

UGC DOR8922979
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.00 CAD - $295.00 CAD
$295.00 CAD
$295.00 CAD - $295.00 CAD
$295.00 CAD

Vendu en lots de : 1

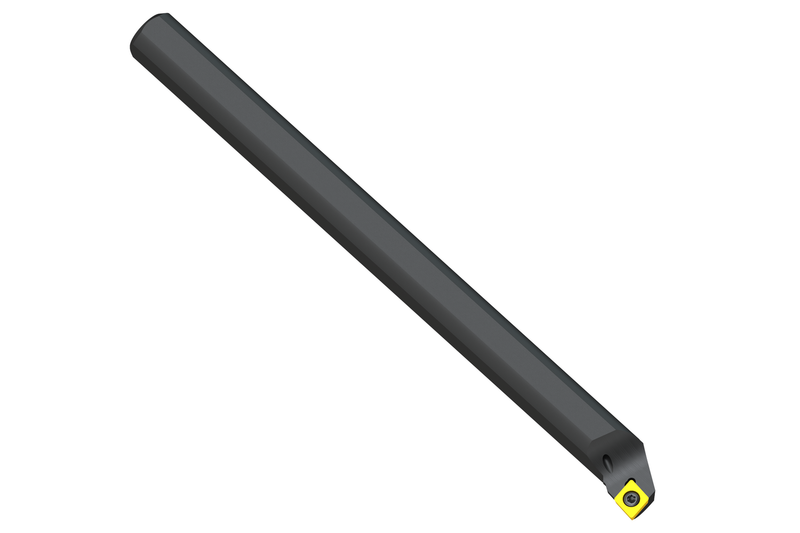

Outil de tournage interne A25T-SCLCL 09. Corps en acier. Opérations d'alésage. Tournage longitudinal. Capacité de coupe latérale et frontale. Convient pour l'usinage avec et sans épaulement. Pour les applications générales d'usinage interne.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25T-SCLCL 09
Product Number8922979
Product FamilyCGPC(RL) INT
Insert Geometry
Cutting Tool Angle (KAPR)95°

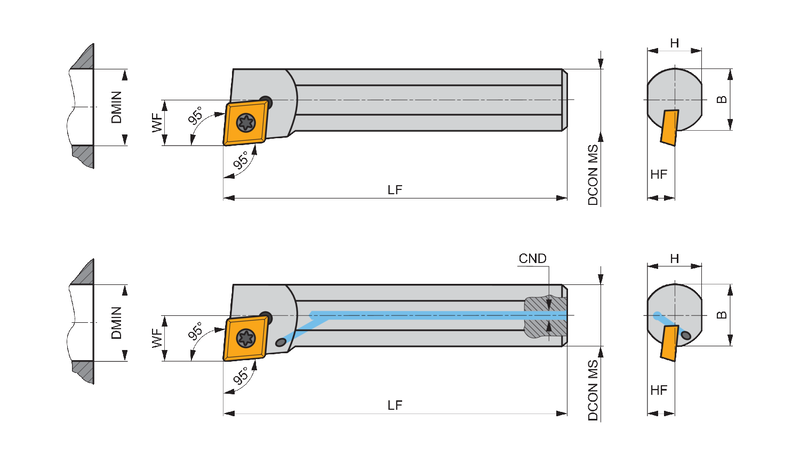

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)23.0 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Tool DesignCC
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number8922979
EAN3603604720205
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
A25T-SCLCL 09 — 3D Model STP Download
A25T-SCLCL 09 — 2D Model DXF Download
A25T-SCLCL 09 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
