A25T-SCLCR 09
A25T-SCLCR 09
A25T-SCLCR 09
A25T-SCLCR 09

A25T-SCLCR 09

UGC DOR9003069
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.00 CAD - $295.00 CAD
$295.00 CAD
$295.00 CAD - $295.00 CAD
$295.00 CAD

Vendu en lots de : 1

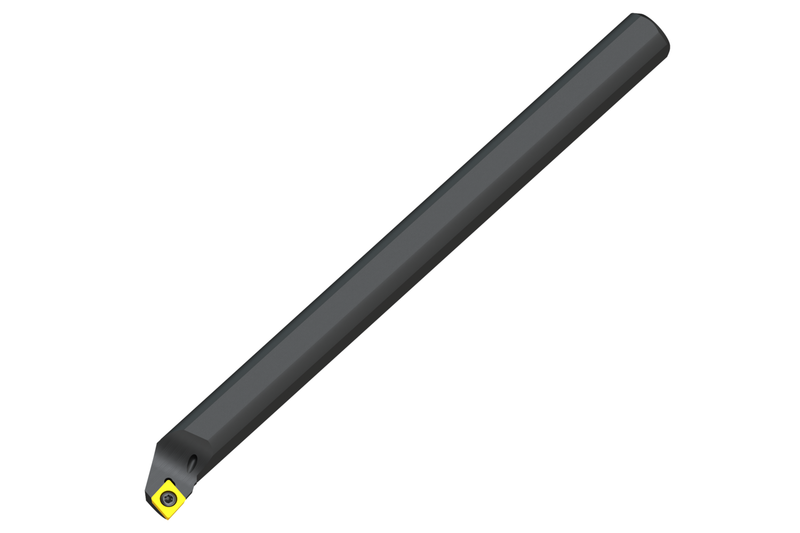

A25T-SCLCR 09 Outil de tournage intérieur. Corps en acier. Opérations d'alésage. Tournage longitudinal. Capacité de coupe latérale et frontale. Convient pour l'usinage avec et sans épaulement. Pour les applications générales d'usinage interne.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25T-SCLCR 09
Product Number9003069
Product FamilyCSCP(RL) INT
Insert Geometry
Cutting Tool Angle (KAPR)95°

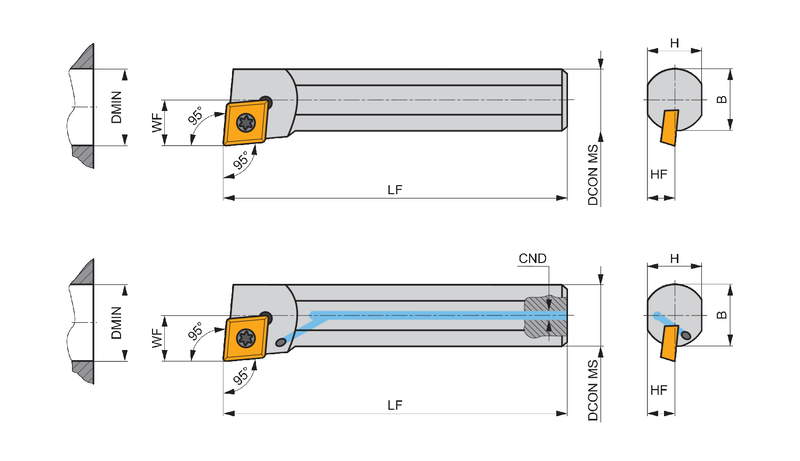

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)23.0 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Tool DesignCC
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number9003069
EAN3603604789608
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
A25T-SCLCR 09 — 3D Model STP Download
A25T-SCLCR 09 — 2D Model DXF Download
A25T-SCLCR 09 — Line Drawing PDF Download
