A25T-SDUCL 11
A25T-SDUCL 11
A25T-SDUCL 11
A25T-SDUCL 11

A25T-SDUCL 11

UGC DOR8923001
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.00 CAD - $295.00 CAD
$295.00 CAD
$295.00 CAD - $295.00 CAD
$295.00 CAD

Vendu en lots de : 1

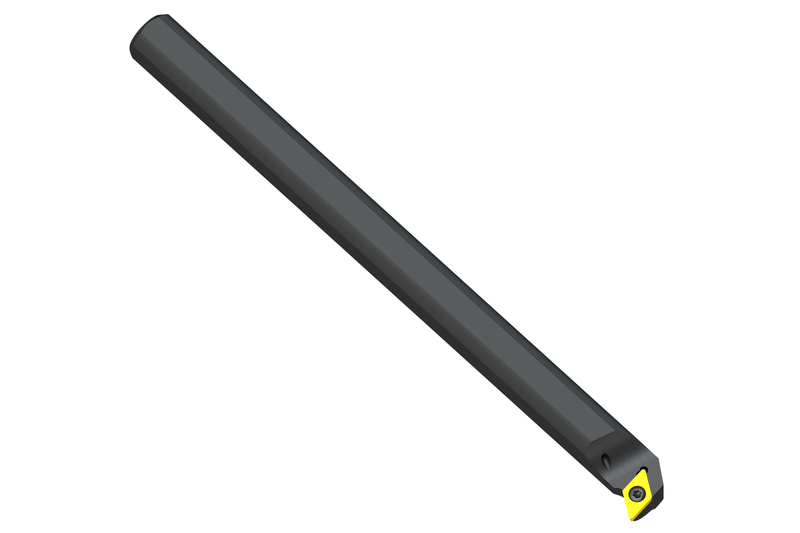

Outil de tournage interne A25T-SDUCL 11. Corps en acier. Opérations d'alésage. Tournage longitudinal. Capacité de coupe latérale et frontale. Convient pour l'usinage avec et sans épaulement. Pour les applications générales d'usinage interne.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25T-SDUCL 11
Product Number8923001
Product FamilySDUC(RL) INT
Insert Geometry
Cutting Tool Angle (KAPR)93°

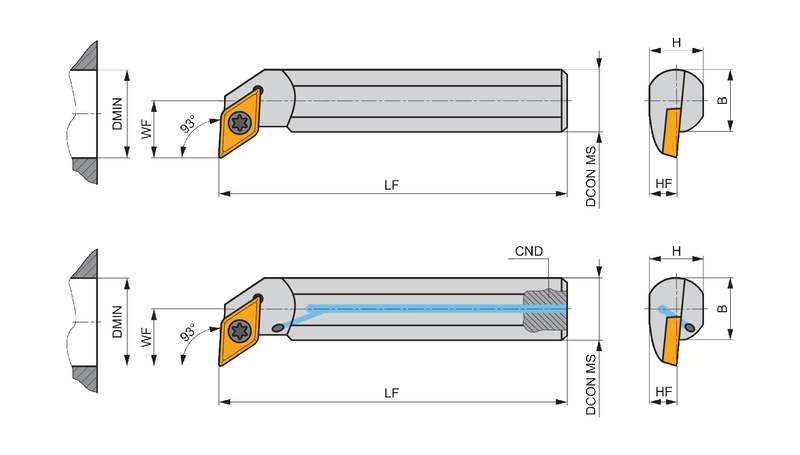

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)23.0 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Tool DesignCC
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number8923001
EAN3603604720427
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
A25T-SDUCL 11 — 3D Model STP Download
A25T-SDUCL 11 — 2D Model DXF Download
A25T-SDUCL 11 — Line Drawing PDF Download
