A32T-SCLCL 12
A32T-SCLCL 12
A32T-SCLCL 12
A32T-SCLCL 12

A32T-SCLCL 12

UGC DOR8922981
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$408.00 CAD - $408.00 CAD
$408.00 CAD
$408.00 CAD - $408.00 CAD
$408.00 CAD

Vendu en lots de : 1

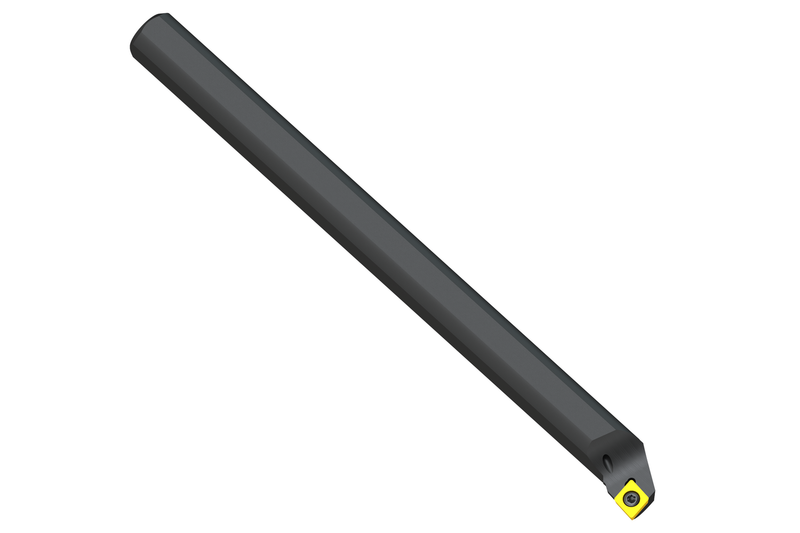

Outil de chariotage intérieur A32T-SCLCL 12. Corps en acier. Opérations d'alésage. Tournage longitudinal. Capacité de coupe latérale et frontale. Convient pour l'usinage avec et sans épaulement. Pour les applications générales d'usinage intérieur.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A32T-SCLCL 12
Product Number8922981
Product FamilySCLC(RL) INT
Insert Geometry
Cutting Tool Angle (KAPR)95°

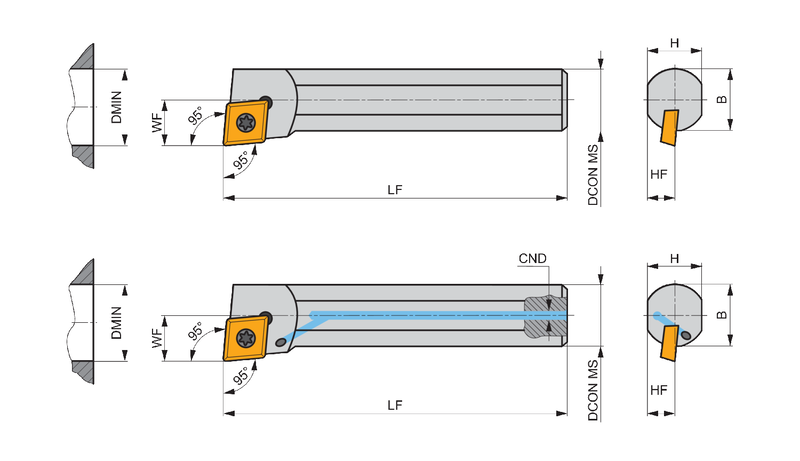

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)30.0 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Tool DesignCC
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number8922981
EAN3603604720229
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
A32T-SCLCL 12 — 3D Model STP Download
A32T-SCLCL 12 — 2D Model DXF Download
A32T-SCLCL 12 — Line Drawing PDF Download
