A32T-SCLCR 12
A32T-SCLCR 12
A32T-SCLCR 12
A32T-SCLCR 12

A32T-SCLCR 12

UGC DOR8922982
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$408.00 CAD - $408.00 CAD
$408.00 CAD
$408.00 CAD - $408.00 CAD
$408.00 CAD

Vendu en lots de : 1

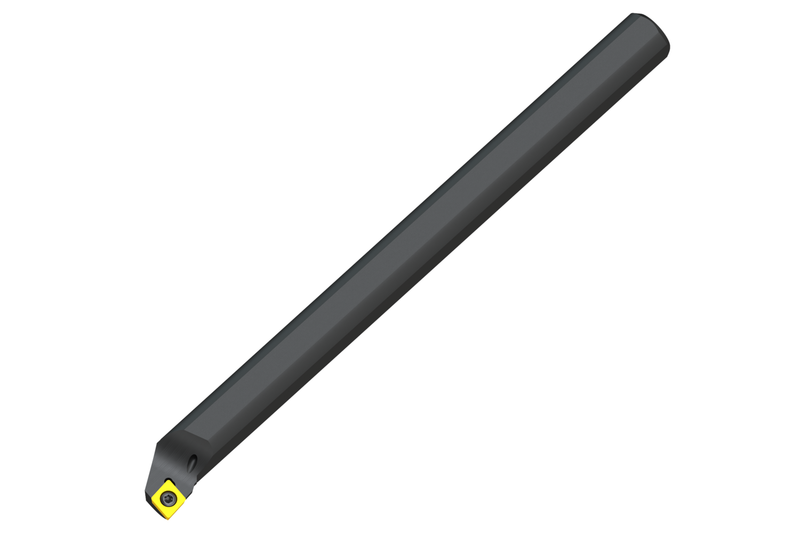

Outil de tournage intérieur A32T-SCLCR 12. Corps en acier. Opérations d'alésage. Tournage longitudinal. Capacité de coupe latérale et frontale. Convient à l'usinage avec et sans épaulement. Pour les applications générales d'usinage interne.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A32T-SCLCR 12
Product Number8922982
Product FamilySCLC(RL) INT
Insert Geometry
Cutting Tool Angle (KAPR)95°

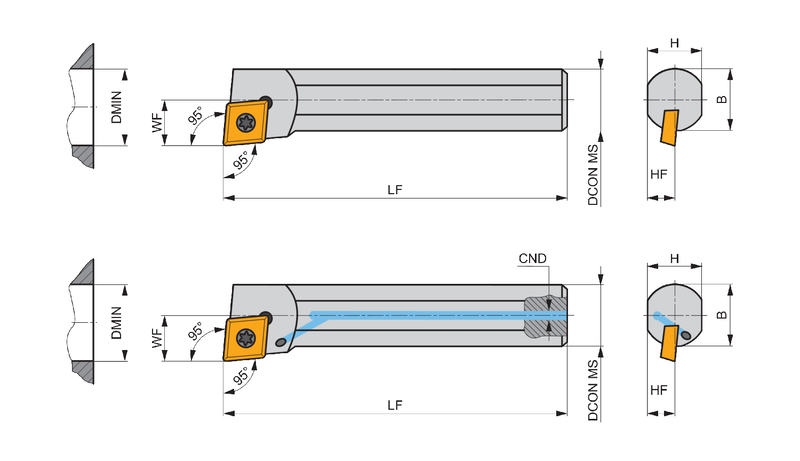

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)30.0 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Tool DesignCC
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8922982
EAN3603604720236
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
A32T-SCLCR 12 — 3D Model STP Download
A32T-SCLCR 12 — 2D Model DXF Download
A32T-SCLCR 12 — Line Drawing PDF Download
