C4-BS-SFN3050
C4-BS-SFN3050
C4-BS-SFN3050
C4-BS-SFN3050

C4-BS-SFN3050

UGC DOR9002774
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,544.29 CAD - $1,544.29 CAD
$1,544.29 CAD
$1,544.29 CAD - $1,544.29 CAD
$1,544.29 CAD

Vendu en lots de : 1

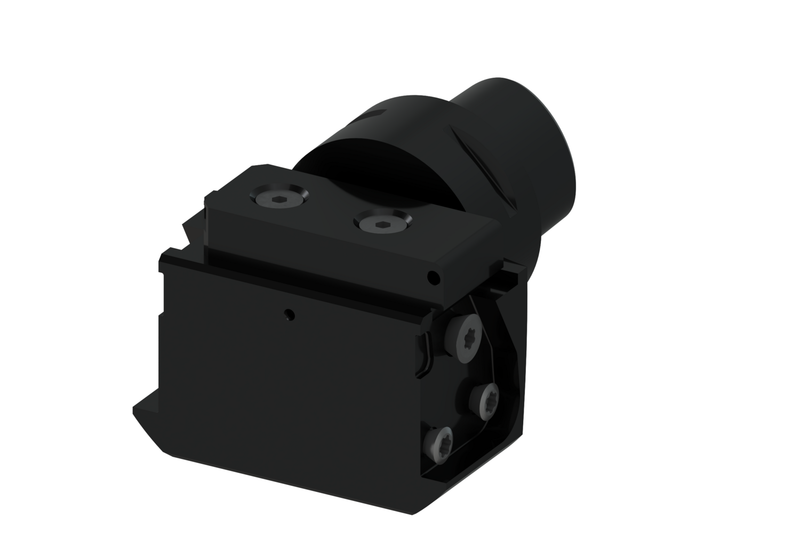

C4-BS-SFN3050 est un porte-outil modulaire pour les lames de rainurage et de tronçonnage de type BS avec un bloc de refroidissement réglable. Queue d'outil selon la norme ISO 26623 (raccord à queue polygonale) taille C4.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C4-BS-SFN3050
Product Number9002774
Product FamilyC.-BS-F EXT

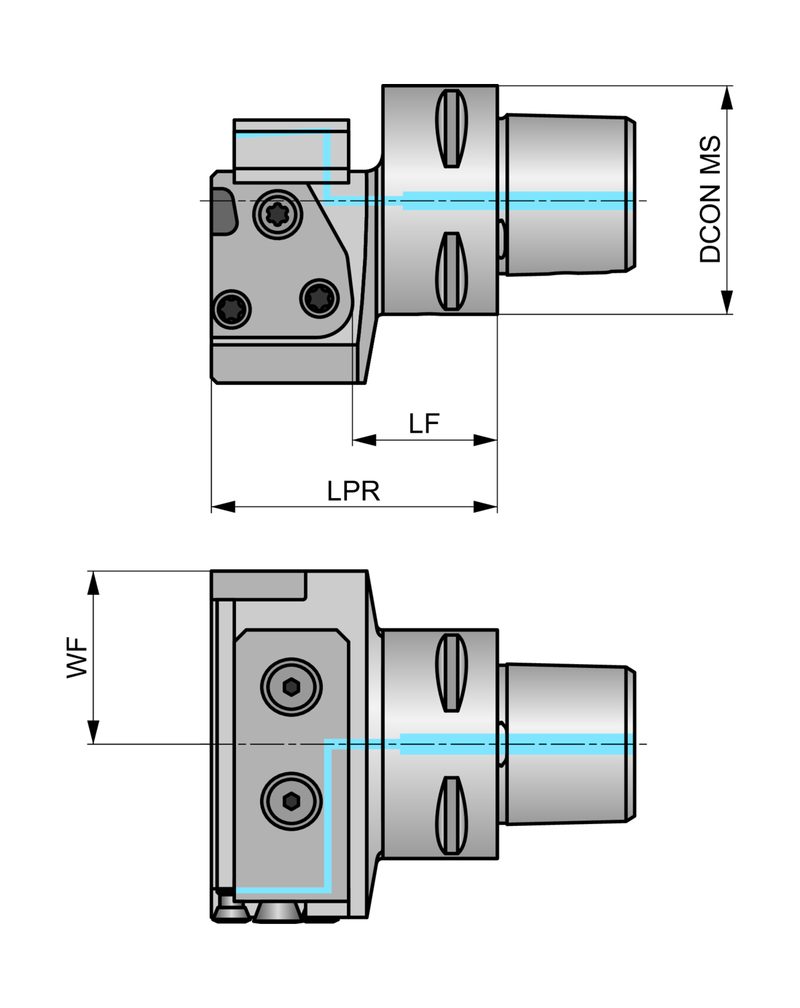

Dimensions
Functional Length — in (LF)0.996"
Functional Length — mm (LF)25.3 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Tool Information
Direction of ToolNeutre
Through Coolant Yes
Reference Numbers
EDP Number9002774
EAN3603604791243
File Type Download
C4-BS-SFN3050 — 3D Model STP Download
C4-BS-SFN3050 — 2D Model DXF Download
C4-BS-SFN3050 — Line Drawing PDF Download
