CCMT 21.50.5-NF2:T9425
CCMT 21.50.5-NF2:T9425
CCMT 21.50.5-NF2:T9425
CCMT 21.50.5-NF2:T9425

CCMT 21.50.5-NF2:T9425

UGC DOR8985931
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.54 CAD - $11.54 CAD
$11.54 CAD
$11.54 CAD - $11.54 CAD
$11.54 CAD

Vendu en lots de : 10

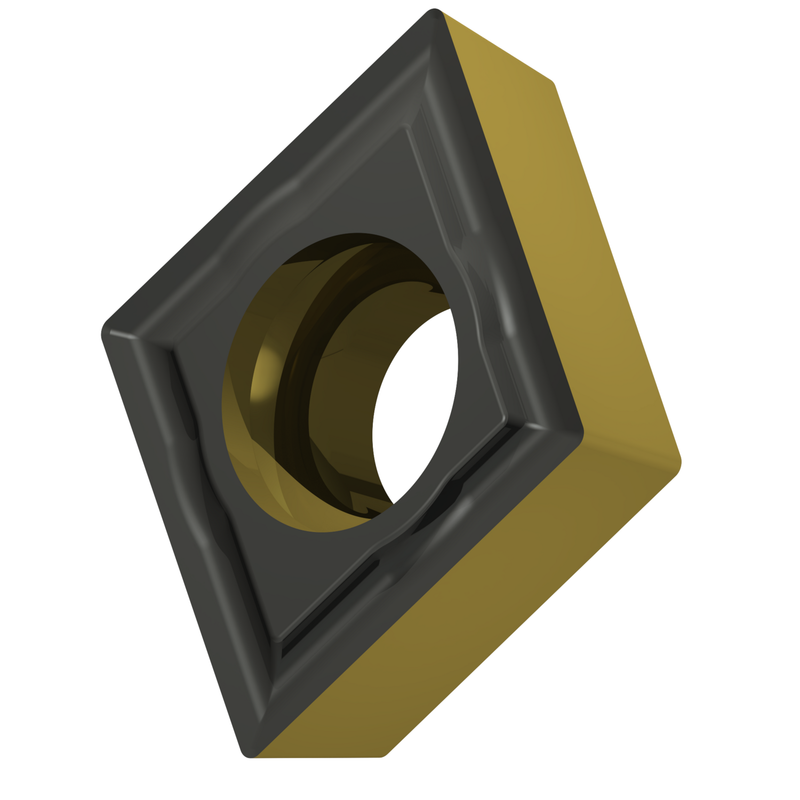

Plaquette positive simple face pour tournage, C - rhomboïdale angle de 80°, taille 6 avec rayon de bec de 0,2 mm. Combinaison de brise-copeaux NF2, arête vive, premier choix pour la finition des aciers inoxydables. Angle de coupe positif sans méplat. Convient également aux superalliages et, sous certaines conditions, aux aciers, fontes et alliages non ferreux. Revêtement MT-CVD, substrat à gradient fonctionnel T9425, conçu principalement pour les matériaux du groupe P. Convient aux matériaux : M - Aciers inoxydables (aciers résistants à la corrosion avec ≥ 11 % de chrome) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CCMT 21.50.5-NF2:T9425
GradeT9425
Chipbreaker (CBMD)NF2
Product Number8985931
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Tool DesignCC
SubstrateSubstrat à gradient fonctionnel
Reference Numbers
EDP Number8985931
EAN3603604777377
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
CCMT 21.50.5-NF2:T9425 — Line Drawing PDF Download
