CCMT 32.52-RM:T5405
CCMT 32.52-RM:T5405
CCMT 32.52-RM:T5405
CCMT 32.52-RM:T5405

CCMT 32,52-RM:T5405

UGC DOR8985022
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.19 CAD - $12.19 CAD
$12.19 CAD
$12.19 CAD - $12.19 CAD
$12.19 CAD

Vendu en lots de : 10

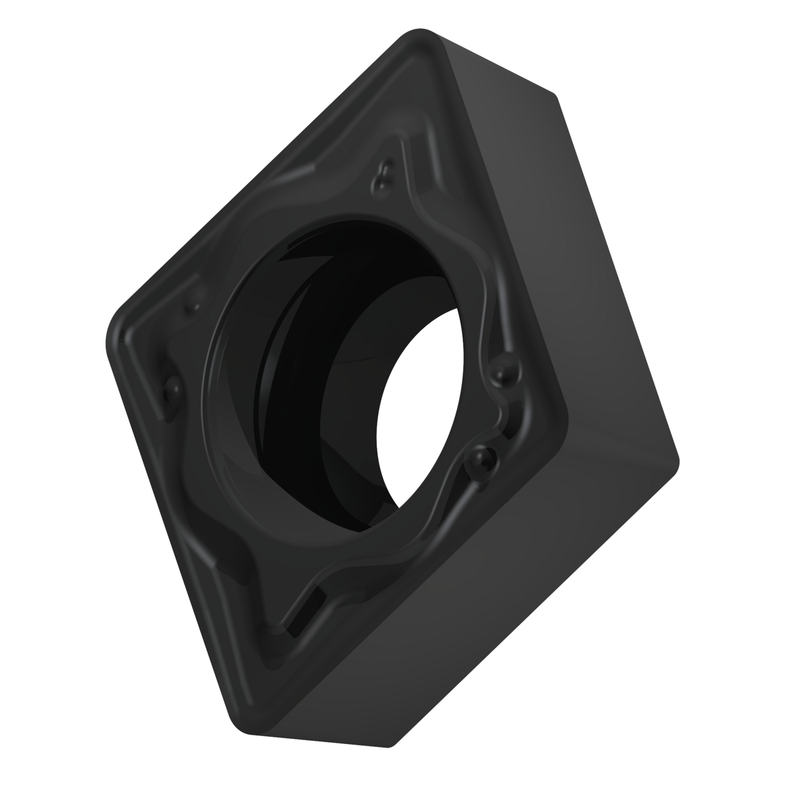

Plaquette de tournage positive simple face, C - rhomboïdale angle inclus 80°, taille 9 avec rayon de coin 0,8 mm. Combinaison de brise-copeaux RM, brise-copeaux robuste et premier choix pour l'ébauche des aciers et des fontes. Elle présente un angle de coupe positif et une large facette en T stable. Elle convient également aux aciers inoxydables, et sous certaines conditions aux superalliages et aux matériaux durs. Et substrat T5405 en WC-Co, revêtu MT-CVD. Convient aux matériaux : K - Fonte (pièces moulées en alliages de fer et de carbone avec > 2 % de teneur en carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CCMT 32.52-RM:T5405
GradeT5405
Chipbreaker (CBMD)RM
Product Number8985022
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Tool DesignCC
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985022
EAN3603604774291
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download

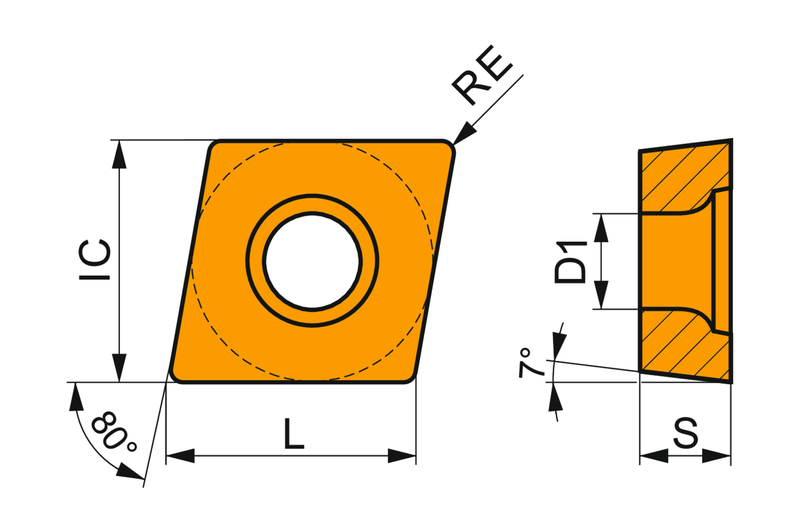

CCMT 32,52-RM:T5405 — Line Drawing PDF Download
