UGC DOR8985024
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.33 CAD - $11.33 CAD
$11.33 CAD
$11.33 CAD - $11.33 CAD
$11.33 CAD

Vendu en lots de : 10

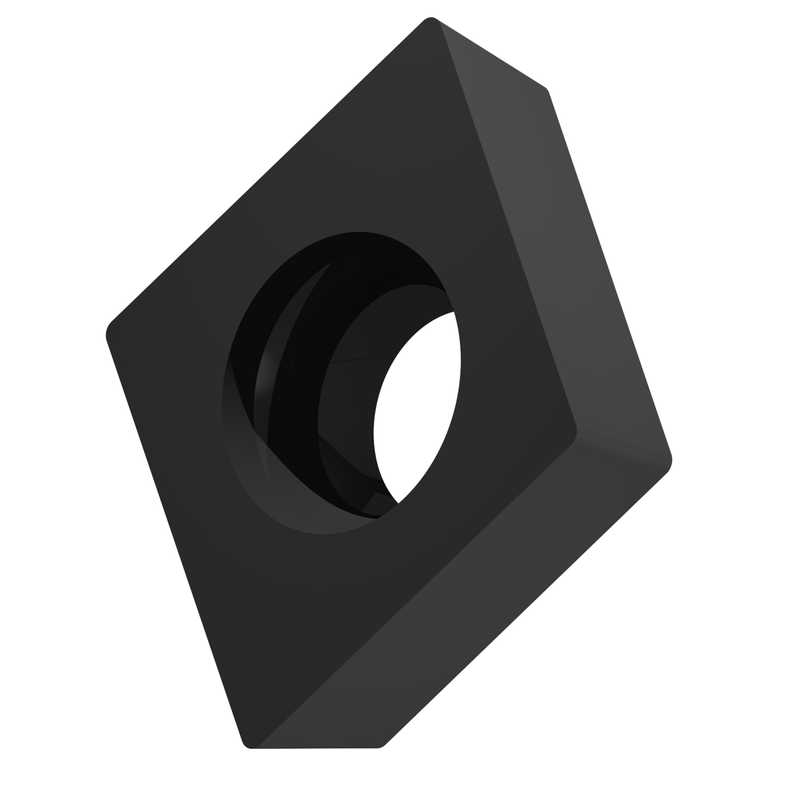

Plaquette positive simple face, C - rhomboïdale angle de 80°, taille 6 avec rayon de coin de 0,2 mm. La combinaison brise-copeaux .CMW est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle est également conditionnellement adaptée aux matériaux durs. Et le substrat T5405 à base de WC-Co revêtu de MT-CVD convient aux matériaux : K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de carbone) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CCMW 21.50.5:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8985024
Product FamilyCCMW

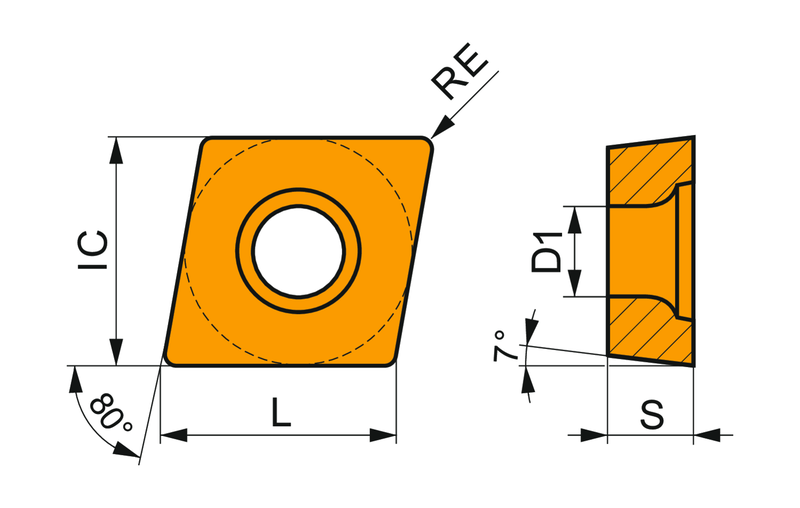

Insert Geometry
Insert DesignCCMF
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.165"
Depth of Cut Max — mm (APMX)4.2 mm
Tool Information
Tool DesignCC
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985024
EAN3603604774314
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
CCMW 21.50.5:T5405 — Line Drawing PDF Download
