CCMW 21.51:T5405
CCMW 21.51:T5405
CCMW 21.51:T5405
CCMW 21.51:T5405

CCMW 21.51:T5405

UGC DOR8985025
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.61 CAD - $10.61 CAD
$10.61 CAD
$10.61 CAD - $10.61 CAD
$10.61 CAD

Vendu en lots de : 10

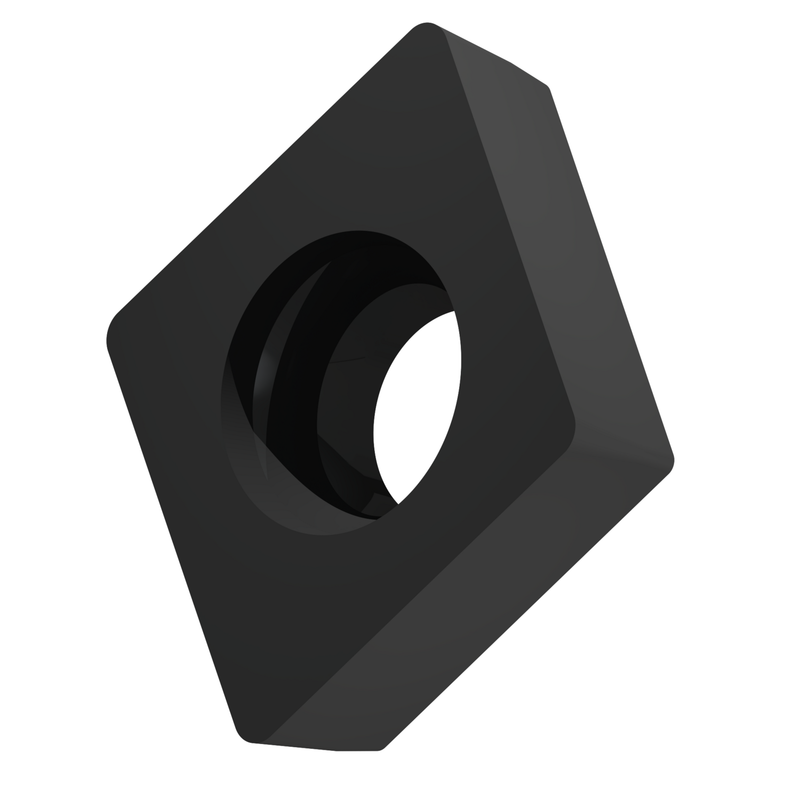

Plaquette de tournage positive simple face, C - rhomboïde, angle inclus de 80°, taille 6 avec rayon de bec de 0,4 mm. La combinaison de brise-copeaux .CMW et de plaquette plate est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans facette de renfort. Elle convient également sous certaines conditions aux matériaux durs. Le substrat T5405 en WC-Co avec revêtement MT-CVD convient aux matériaux : K - Fonte (pièces moulées en alliages de fer et de carbone avec > 2 % de teneur en carbone) et pour la coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CCMW 21.51:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8985025
Product FamilyCCMW

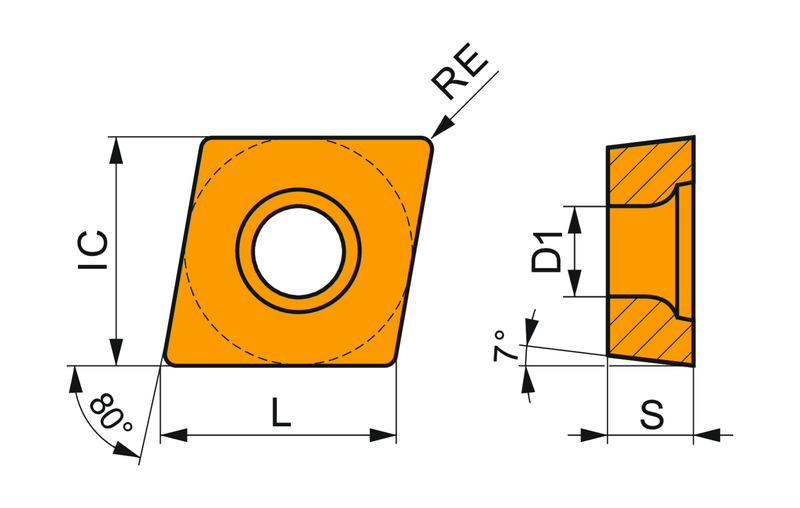

Insert Geometry
Insert DesignCCMW
Insert Shape Code (SC)C - angle entre faces de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.165"
Depth of Cut Max — mm (APMX)4.2 mm
Tool Information
Tool DesignCC
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985025
EAN3603604774321
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
CCMW 21.51:T5405 — Line Drawing PDF Download
