CCMW 32.51:T5405
CCMW 32.51:T5405
CCMW 32.51:T5405
CCMW 32.51:T5405

CCMW 32.51:T5405

UGC DOR8985026
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.19 CAD - $12.19 CAD
$12.19 CAD
$12.19 CAD - $12.19 CAD
$12.19 CAD

Vendu en lots de : 10

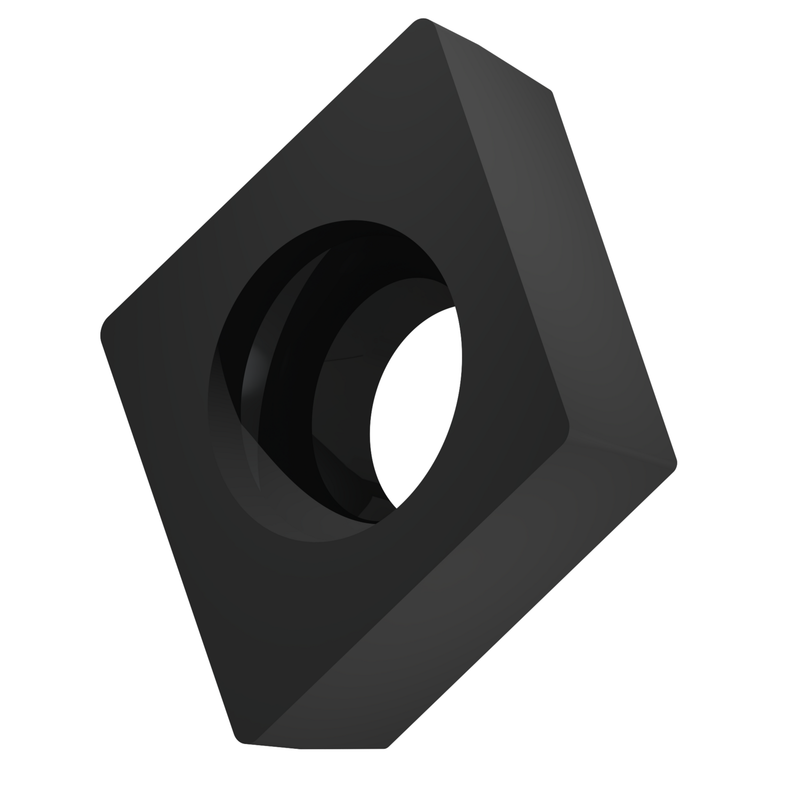

Plaquette positive simple face, C - rhomboïde 80° d'angle d'inclusion, taille 9 avec rayon de coin 0,4 mm. La combinaison de brise-copeaux, plaquette plate .CMW est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans facette de planage. Elle convient également de manière conditionnelle aux matériaux durs, et le substrat T5405 à base de WC-Co revêtu MT-CVD convient aux matériaux : K - Fonte (pièces moulées en alliages de fer et de carbone avec > 2 % de teneur en carbone) et Coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CCMW 32.51:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8985026
Product FamilyCCMF

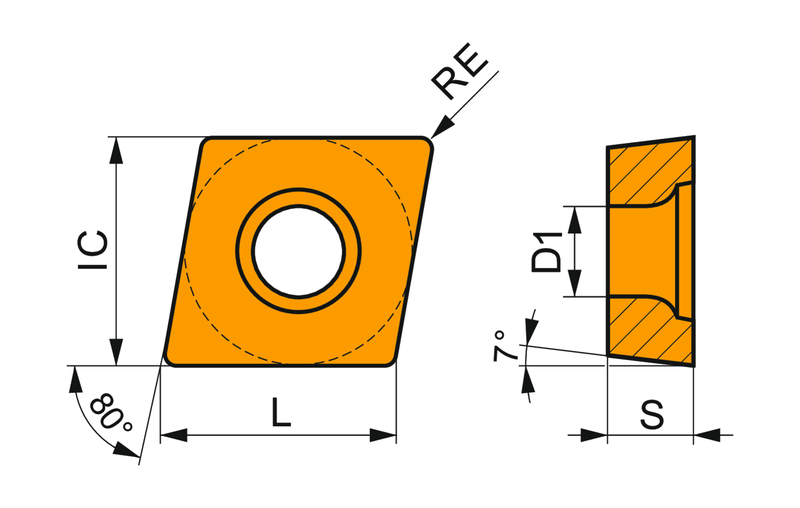

Insert Geometry
Insert DesignCCMW
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.248"
Depth of Cut Max — mm (APMX)6.3 mm
Tool Information
Tool DesignCC
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985026
EAN3603604774338
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
CCMW 32.51:T5405 — Line Drawing PDF Download
