UGC DOR8985028
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.07 CAD - $17.07 CAD
$17.07 CAD
$17.07 CAD - $17.07 CAD
$17.07 CAD

Vendu en lots de : 10

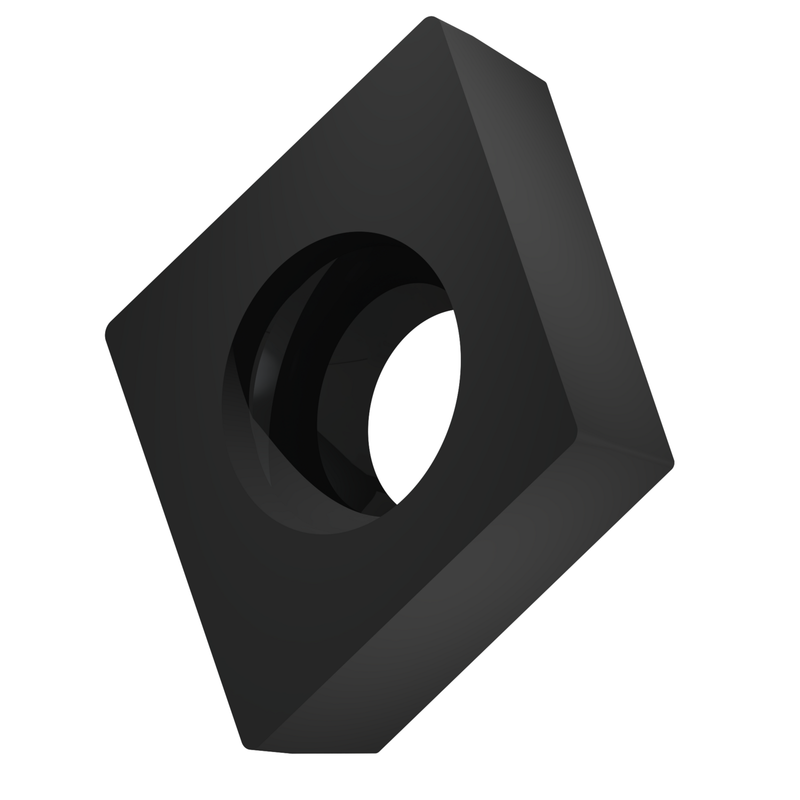

Plaquette de tournage positive simple face, C - rhomboïdale angle inclus 80°, taille 12 avec rayon de bec 0,4 mm. La combinaison de brise-copeaux et de plaquette plate .CMW est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans facette de renfort. Elle est également conditionnellement adaptée aux matériaux durs. Et le substrat T5405 en WC-Co, revêtu MT-CVD, convient aux matériaux : K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de teneur en carbone) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CCMW 431:T5405
GradeT5405
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number8985028
Product FamilyCCMM
Insert Geometry
Insert DesignCCMF
Insert Shape Code (SC)C - angle de 80° inclus rhomboïde
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.331"
Depth of Cut Max — mm (APMX)8.4 mm
Tool Information
Tool DesignCC
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985028
EAN3603604774352
Material Group Suitability
K — Cast Iron Usage principal
File Type Download

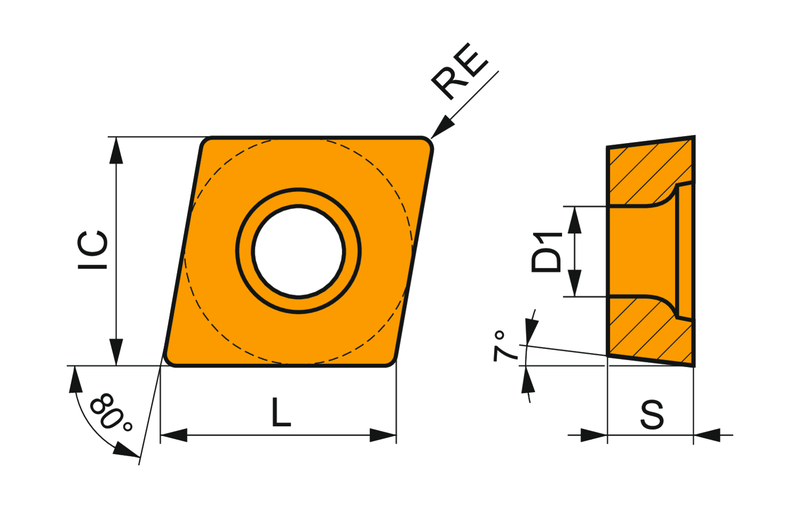

CCMW 431:T5405 — Line Drawing PDF Download
