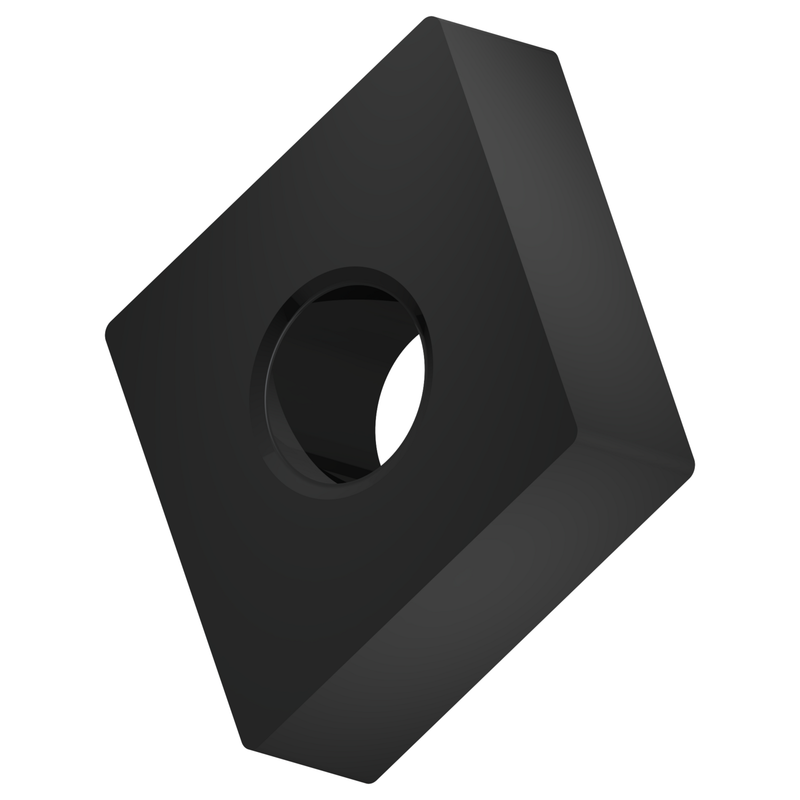

CNMA 431:T5405
CNMA 431:T5405
CNMA 431:T5405
CNMA 431:T5405

CNMA 431:T5405

UGC DOR8984923
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 CAD - $14.43 CAD
$14.43 CAD
$14.43 CAD - $14.43 CAD
$14.43 CAD

Vendu en lots de : 10

Plaquette négative double face, C - rhomboïde angle inclus de 80°, taille 12 avec rayon de bec de 0,4 mm. La combinaison brise-copeaux .NMA de la plaquette plate est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans facette. Elle convient également sous certaines conditions aux matériaux durs. Et le substrat T5405 en WC-Co, revêtu MT-CVD, convient aux matériaux : K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de teneur en carbone) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMA 431:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8984923
Product FamilyCNMA
Insert Geometry
Insert DesignCNMA
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.331"
Depth of Cut Max — mm (APMX)8.4 mm
Tool Information
Tool DesignChine
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984923
EAN3603604772402
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
CNMA 431:T5405 — Line Drawing PDF Download
