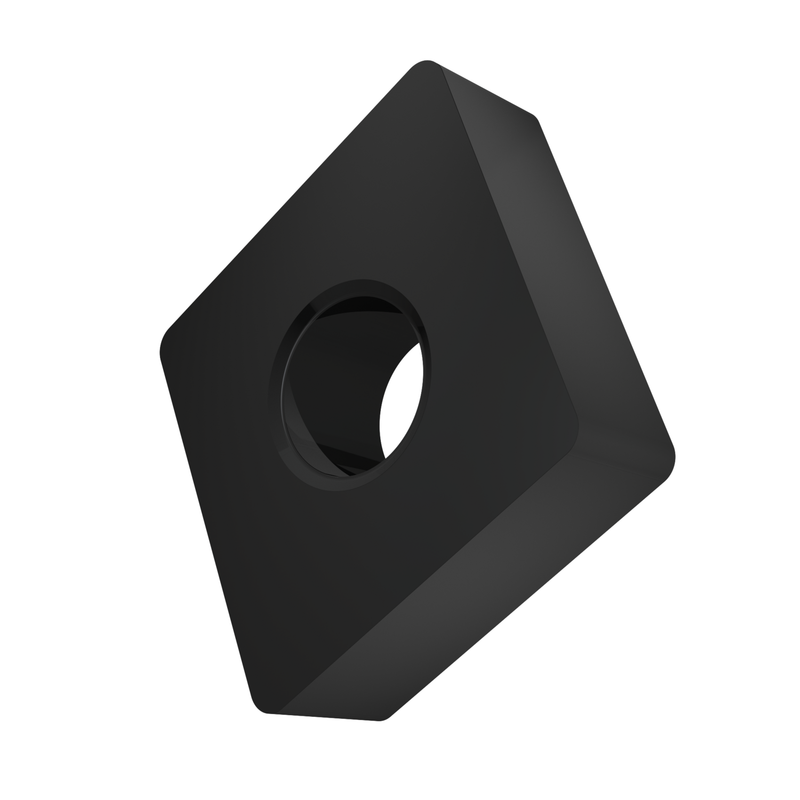

CNMA 432:T5405
CNMA 432:T5405
CNMA 432:T5405
CNMA 432:T5405

CNMA 432:T5405

UGC DOR8984924
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 CAD - $14.43 CAD
$14.43 CAD
$14.43 CAD - $14.43 CAD
$14.43 CAD

Vendu en lots de : 10

Plaquette négative double-face, C - losange 80° d'angle d'hélice, taille 12 avec rayon de bec 0,8 mm. La combinaison de brise-copeaux .NMA pour plaquette plate est conçue pour l'usinage moyen de la fonte. Elle présente un angle de coupe neutre sans facette de dépouille. Elle convient également de manière conditionnelle aux matériaux durs. Et un substrat T5405 à base de WC-Co revêtu MT-CVD convient aux matériaux : K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de teneur en carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMA 432:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8984924
Product FamilyACM
Insert Geometry
Insert DesignCNMA
Insert Shape Code (SC)C - angle de 80° inclus, rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.331"
Depth of Cut Max — mm (APMX)8.4 mm
Tool Information
Tool DesignChine
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984924
EAN3603604772419
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
CNMA 432:T5405 — Line Drawing PDF Download
