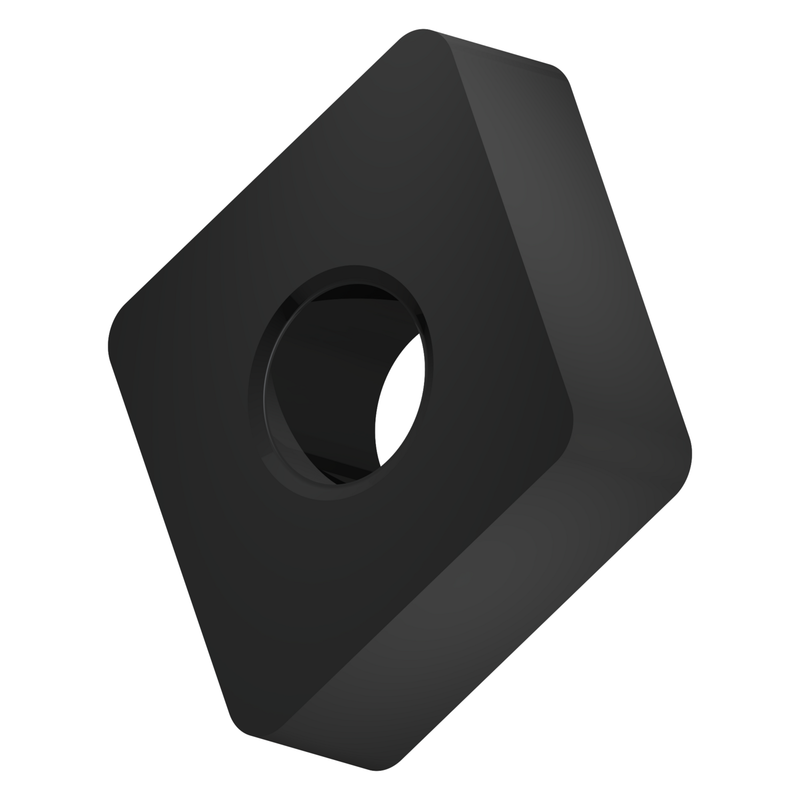

CNMA 433:T5405
CNMA 433:T5405
CNMA 433:T5405
CNMA 433:T5405

CNMA 433:T5405

UGC DOR8984926
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 CAD - $14.43 CAD
$14.43 CAD
$14.43 CAD - $14.43 CAD
$14.43 CAD

Vendu en lots de : 10

Plaquette négative double face, C - rhomboïde, angle de 80° inclus, taille 12 avec rayon de bec de 1,2 mm. La combinaison de brise-copeaux .NMA plate est conçue pour l'usinage moyen de la fonte. Elle présente un angle de coupe neutre sans T-land. Elle convient également sous certaines conditions aux matériaux durs et au substrat T5405 à base de WC-Co avec revêtement MT-CVD. Convient aux matériaux : K - fonte (pièces moulées en fer et alliages de carbone avec une teneur en carbone > 2 %) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMA 433:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8984926
Product FamilyCNMA
Insert Geometry
Insert DesignCNMA
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.331"
Depth of Cut Max — mm (APMX)8.4 mm
Tool Information
Tool DesignChine
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984926
EAN3603604772433
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
CNMA 433:T5405 — Line Drawing PDF Download
