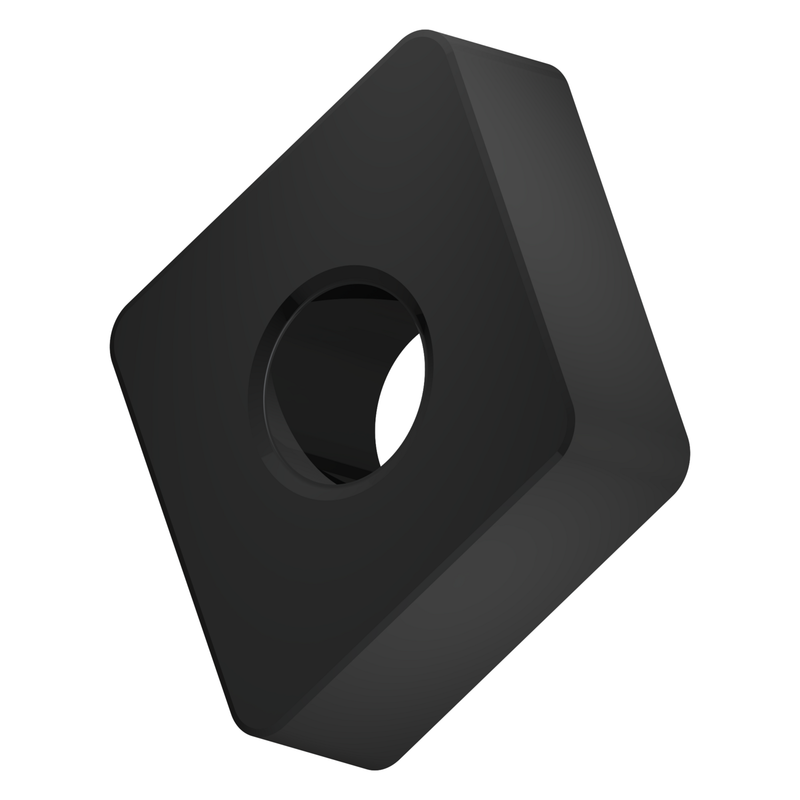

CNMA 433S:T5405
CNMA 433S:T5405
CNMA 433S:T5405
CNMA 433S:T5405

CNMA 433S:T5405

UGC DOR8984927
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 CAD - $14.43 CAD
$14.43 CAD
$14.43 CAD - $14.43 CAD
$14.43 CAD

Vendu en lots de : 10

Plaquette négative double face, C - rhomboïde 80° d'angle inclus, taille 12 avec rayon de bec de 1,2 mm. La combinaison brise-copeaux .NMA..S de la plaquette plate est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre et un listel modéré négatif. Elle convient également de manière conditionnelle aux matériaux durs. et un substrat T5405 à base de WC-Co revêtu MT-CVD. Convient aux matériaux : K - Fonte (pièces moulées en fer et alliages de carbone avec > 2 % de teneur en carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMA 433S:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8984927
Product FamilyCNMA
Insert Geometry
Insert DesignCNMA
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.331"
Depth of Cut Max — mm (APMX)8.4 mm
Tool Information
Tool DesignChine
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984927
EAN3603604772440
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
CNMA 433S:T5405 — Line Drawing PDF Download
