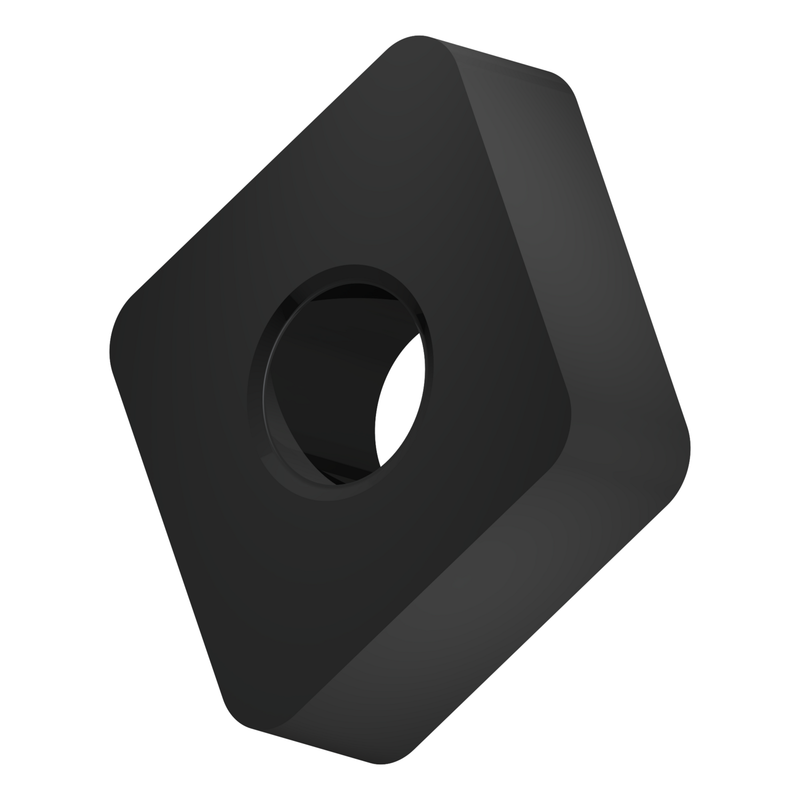

CNMA 434:T5405
CNMA 434:T5405
CNMA 434:T5405
CNMA 434:T5405

CNMA 434:T5405

UGC DOR8984928
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 CAD - $14.43 CAD
$14.43 CAD
$14.43 CAD - $14.43 CAD
$14.43 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, C - rhomboïdale angle de 80°, taille 12 avec rayon de bec de 1,6 mm. La combinaison de brise-copeaux .NMA pour plaquette plate est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle convient également sous certaines conditions aux matériaux durs. Et le substrat WC-Co revêtu MT-CVD T5405. convient aux matériaux : K - Fonte (pièces moulées en fer et alliages de carbone avec > 2 % de teneur en carbone) et Coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMA 434:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8984928
Product FamilyCNMA
Insert Geometry
Insert DesignCNMA
Insert Shape Code (SC)C - angle de 80° inclus, rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.331"
Depth of Cut Max — mm (APMX)8.4 mm
Tool Information
Tool DesignChine
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984928
EAN3603604772457
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
CNMA 434:T5405 — Line Drawing PDF Download
