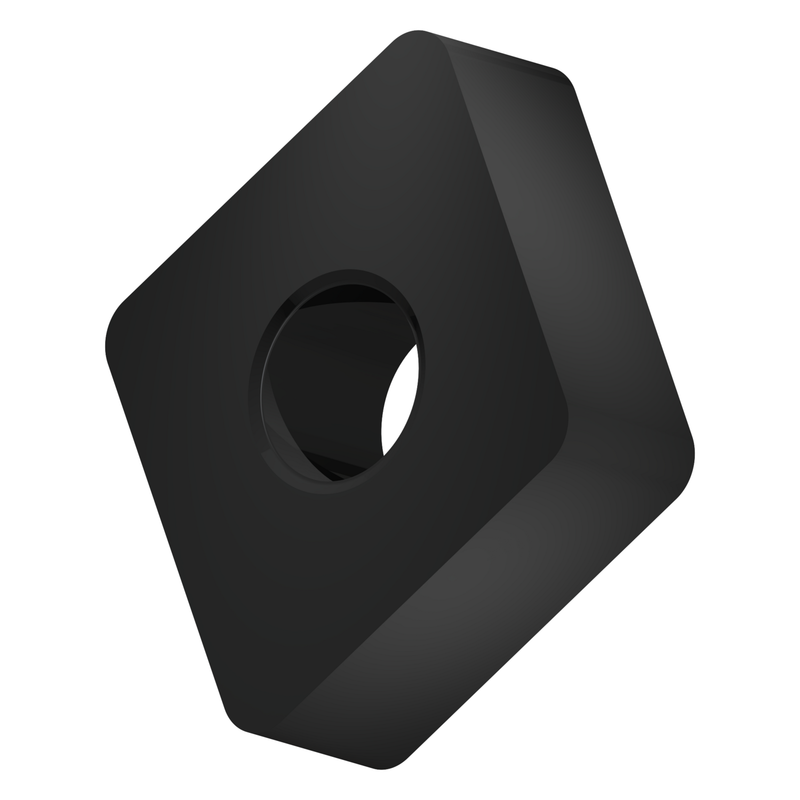

CNMA 544:T5405
CNMA 544:T5405
CNMA 544:T5405
CNMA 544:T5405

CNMA 544:T5405

UGC DOR8984941
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.97 CAD - $22.97 CAD
$22.97 CAD
$22.97 CAD - $22.97 CAD
$22.97 CAD

Vendu en lots de : 10

Plaquette négative double face, C - rhomboïde 80° d'angle d'arête, taille 16 avec rayon de pointe 1,6 mm. La combinaison brise-copeaux .NMA plate est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle convient également sous certaines conditions aux matériaux durs, et le substrat à base de WC-Co T5405, revêtu MT-CVD, convient aux matériaux : K - Fonte (alliages de fer et de carbone avec > 2% de carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMA 544:T5405
GradeT5405
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number8984941
Product FamilyCNMA
Insert Geometry
Insert DesignCNMA
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.875 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.335"
Depth of Cut Max — mm (APMX)8.5 mm
Tool Information
Tool DesignChine
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984941
EAN3603604772488
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
CNMA 544:T5405 — Line Drawing PDF Download
