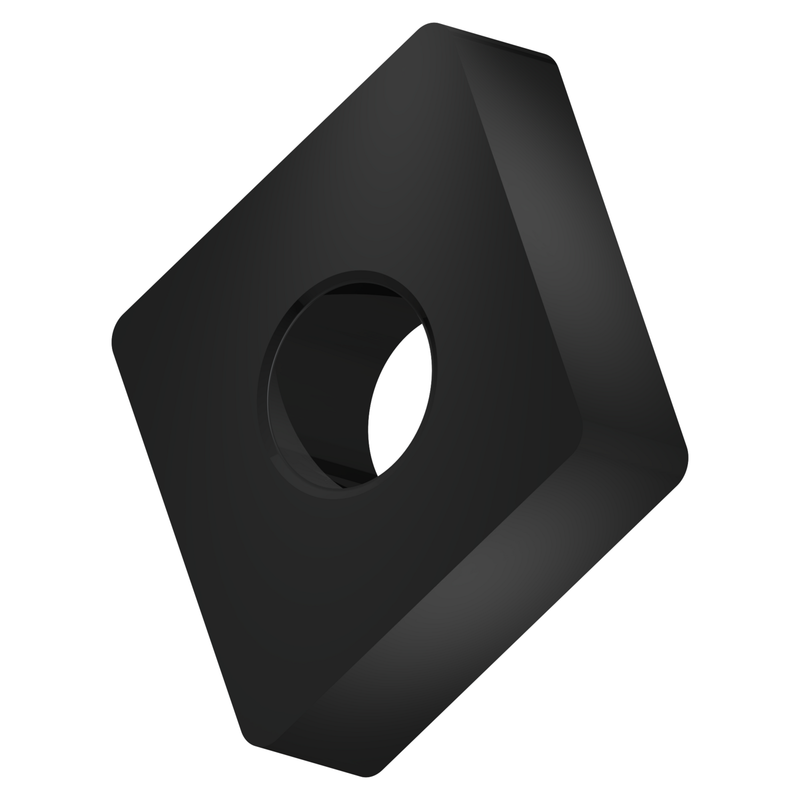

CNMA 643:T5405
CNMA 643:T5405
CNMA 643:T5405
CNMA 643:T5405

CNMA 643:T5405

UGC DOR8984942
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.19 CAD - $31.19 CAD
$31.19 CAD
$31.19 CAD - $31.19 CAD
$31.19 CAD

Vendu en lots de : 10

Plaquette négative double face, C – rhomboïde, angle d'inclusion de 80°, taille 19, avec un rayon de bec de 1,2 mm. La combinaison de brise-copeaux .NMA plate est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle convient également de manière conditionnelle aux matériaux durs. Et un substrat T5405 à base de WC-Co, revêtu de MT-CVD, convient aux matériaux : K – fonte (alliages de fer et de carbone avec une teneur en carbone > 2 %) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMA 643:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8984942
Product FamilyCNMA
Insert Geometry
Insert DesignCNMA
Insert Shape Code (SC)C - losange, angle inclus de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.5"
Depth of Cut Max — mm (APMX)12.7 mm
Tool Information
Tool DesignChine
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984942
EAN3603604772495
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
CNMA 643:T5405 — Line Drawing PDF Download
