CNMA 644:T5405
CNMA 644:T5405
CNMA 644:T5405
CNMA 644:T5405

CNMA 644:T5405

UGC DOR8984943
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.19 CAD - $31.19 CAD
$31.19 CAD
$31.19 CAD - $31.19 CAD
$31.19 CAD

Vendu en lots de : 10

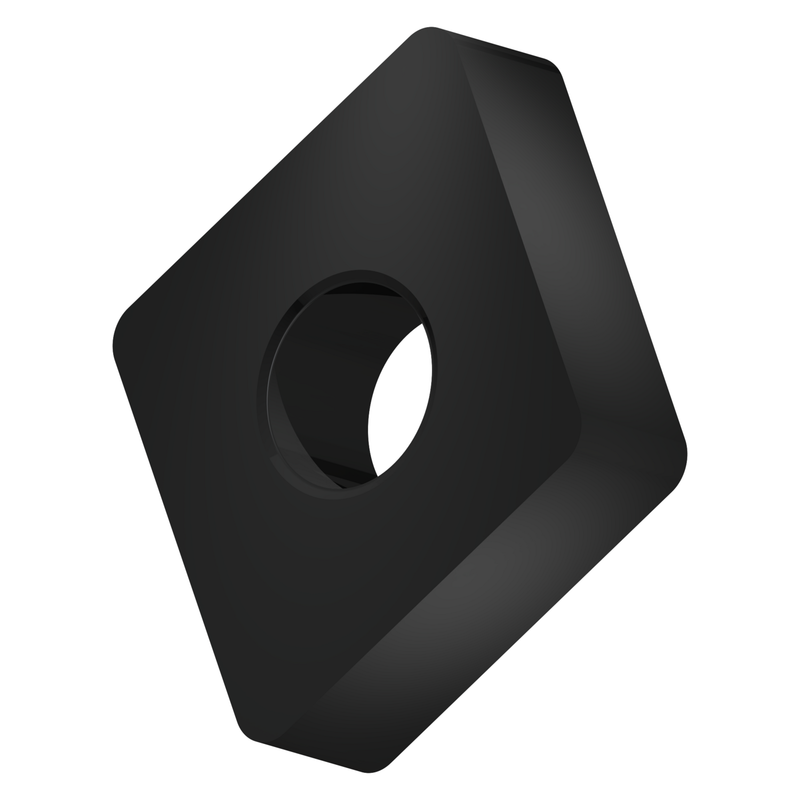

Plaquette négative double face, C – rhomboïde 80° d'angle d'arête, taille 19 avec rayon de pointe 1,6 mm. La plaquette plate .NMA à brise-copeaux est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle convient également de manière conditionnelle aux matériaux durs. Le substrat T5405 en WC-Co, revêtu MT-CVD, convient aux matériaux : K - Fonte (pièces moulées en alliages de fer et de carbone avec une teneur en carbone > 2 %) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMA 644:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8984943
Product FamilyCNMA
Insert Geometry
Insert DesignCNMA
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.5"
Depth of Cut Max — mm (APMX)12.7 mm
Tool Information
Tool DesignChine
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984943
EAN3603604772501
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
CNMA 644:T5405 — Line Drawing PDF Download
