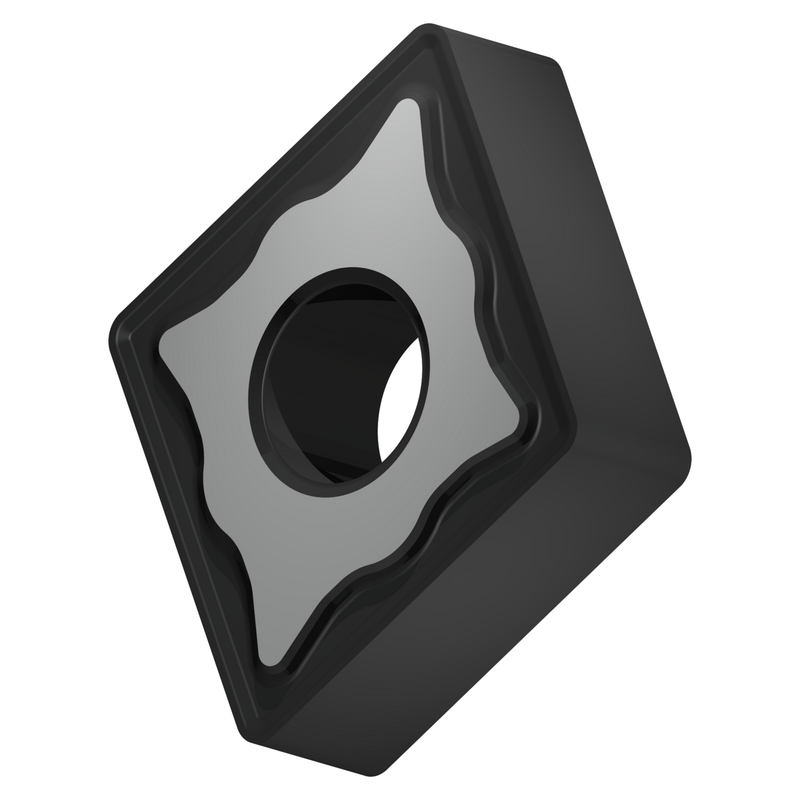

CNMG 432-KR:T5405
CNMG 432-KR:T5405
CNMG 432-KR:T5405
CNMG 432-KR:T5405

CNMG 432-KR:T5405

UGC DOR8984946
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 CAD - $14.43 CAD
$14.43 CAD
$14.43 CAD - $14.43 CAD
$14.43 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, C - rhomboïde angle inclus de 80°, taille 12 avec rayon de bec de 0,8 mm. La combinaison brise-copeaux KR est robuste et le premier choix pour l'ébauche des fontes. Il présente un angle de coupe légèrement positif et une large facette. Il convient également aux aciers et, sous certaines conditions, aux matériaux durs. Substrat T5405 en WC-Co, revêtu MT-CVD. Convient aux matériaux : K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de teneur en carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMG 432-KR:T5405
GradeT5405
Chipbreaker (CBMD)Corée du Sud
Product Number8984946
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.276"
Depth of Cut Max — mm (APMX)7.0 mm
Tool Information
Tool DesignChine
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984946
EAN3603604772532
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
CNMG 432-KR:T5405 — Line Drawing PDF Download
