CNMX 190740SN-RF:T5405
CNMX 190740SN-RF:T5405
CNMX 190740SN-RF:T5405
CNMX 190740SN-RF:T5405

CNMX 190740SN-RF:T5405

UGC DOR8985020
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.93 CAD - $37.93 CAD
$37.93 CAD
$37.93 CAD - $37.93 CAD
$37.93 CAD

Vendu en lots de : 10

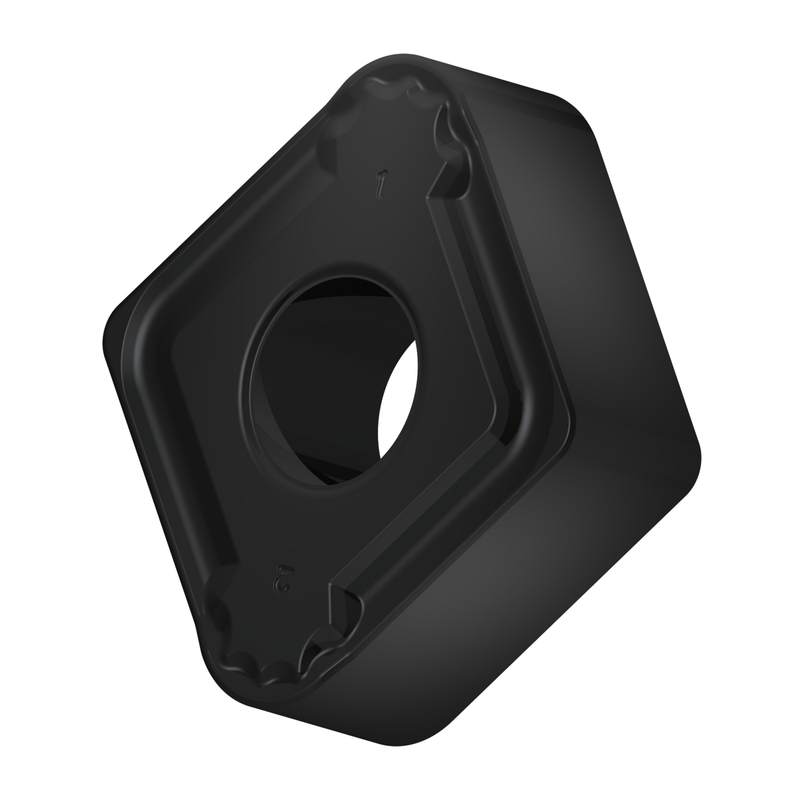

Plaquette double face de tournage [InsertGeometry_DICT_SEL], C - rhomboïde 80° d'angle d'hélice, taille 19 avec rayon de coin 4 mm. Combinaison de la géométrie brise-copeaux RF pour l'ébauche et la semi-finition, et de coupes continues à interrompues. et substrat T5405 en WC-Co, revêtu MT-CVD. Convient aux matériaux : K - Fonte (alliages de fer et de carbone avec > 2 % de teneur en carbone) et coupe interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMX 190740SN-RF:T5405
GradeT5405
Chipbreaker (CBMD)RF
Product Number8985020
Product FamilyCNMX 19

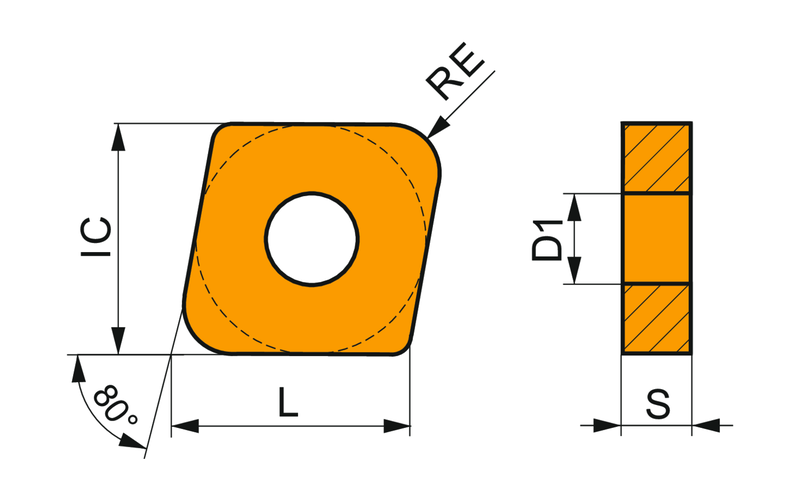

Insert Geometry
Insert DesignCNMX 19
Insert Shape Code (SC)C - angle inclus rhombique 80°
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Corner Radius — in (RE)0.157"
Corner Radius — mm (RE)4 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985020
EAN3603604774277
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
CNMX 190740SN-RF:T5405 — Line Drawing PDF Download
