DCMT 32.52-RM:T5405
DCMT 32.52-RM:T5405
DCMT 32.52-RM:T5405
DCMT 32.52-RM:T5405

DCMT 32.52-RM:T5405

UGC DOR8985031
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.04 CAD - $16.04 CAD
$16.04 CAD
$16.04 CAD - $16.04 CAD
$16.04 CAD

Vendu en lots de : 10

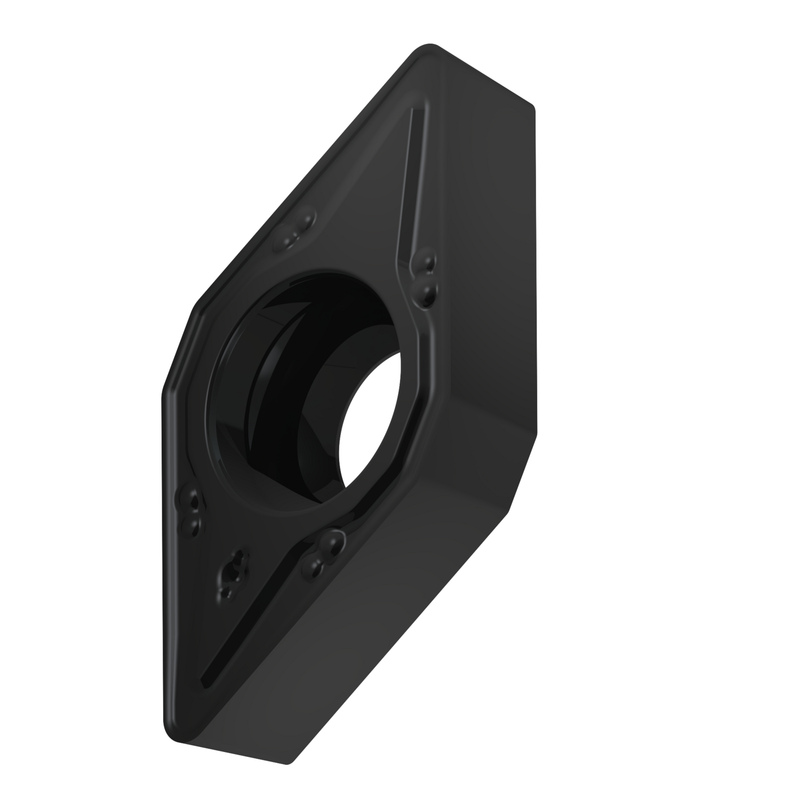

Plaquette positive simple face, D - rhombe 55° angle d'arête, taille 11 avec rayon de pointe 0.8 mm. La combinaison de brise-copeaux RM est robuste et le premier choix pour l'ébauche des aciers et des fontes. Elle présente un angle de coupe positif et une large facette stable. Elle convient également aux aciers inoxydables et, sous certaines conditions, aux superalliages et aux matériaux durs. Et substrat en WC-Co revêtu MT-CVD T5405. Convient pour les matériaux : K - Fonte (alliages de fer et de carbone avec une teneur en carbone > 2 %) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DCMT 32.52-RM:T5405
GradeT5405
Chipbreaker (CBMD)RM
Product Number8985031
Product FamilyDCMT

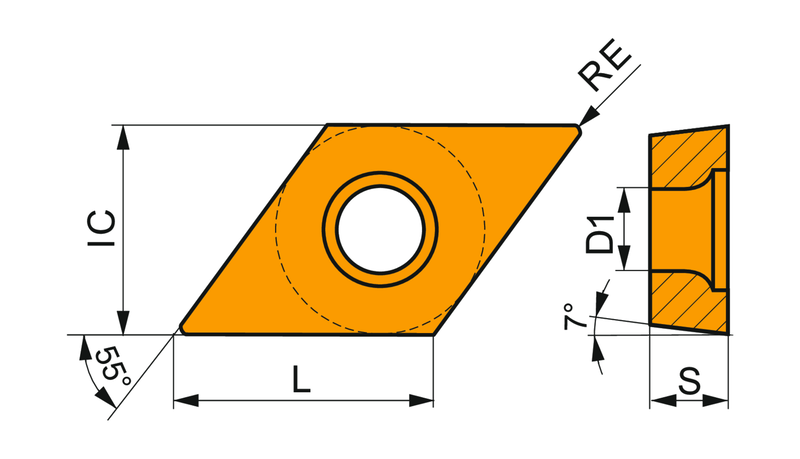

Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - angle inclus rhomboïdal 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Tool DesignCC
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985031
EAN3603604774383
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
DCMT 32.52-RM:T5405 — Line Drawing PDF Download
