DCMW 21.50.5:T5405
DCMW 21.50.5:T5405
DCMW 21.50.5:T5405
DCMW 21.50.5:T5405

DCMW 21.50.5:T5405

UGC DOR8985032
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.61 CAD - $12.61 CAD
$12.61 CAD
$12.61 CAD - $12.61 CAD
$12.61 CAD

Vendu en lots de : 10

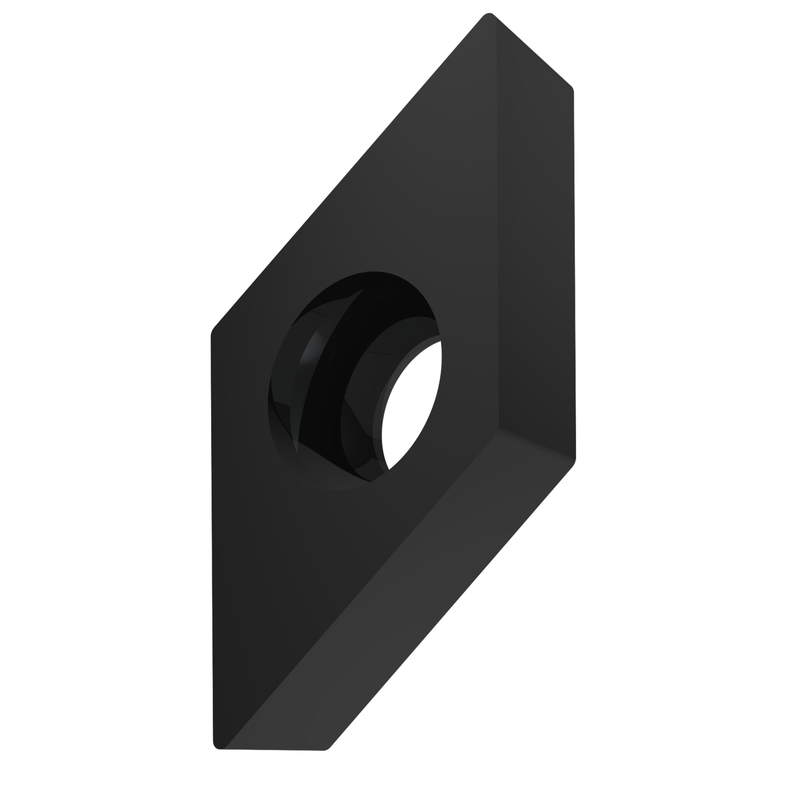

Plaquette positive simple face, D - rhomboïde angle d'arête 55°, taille 7 avec rayon de bec de 0,2 mm. La combinaison brise-copeaux .CMW à plaquette plate est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle convient également sous certaines conditions aux matériaux durs. Et un substrat à base de WC-Co revêtu MT-CVD, T5405. Convient aux matériaux : K - Fonte (alliages de fer et de carbone avec > 2 % de carbone) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DCMW 21.50.5:T5405
GradeT5405
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number8985032
Product FamilyDCMW
Insert Geometry
Insert DesignDCMO
Insert Shape Code (SC)D - angle aigu 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Tool DesignCC
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985032
EAN3603604774390
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
DCMW 21.50.5:T5405 — Line Drawing PDF Download
