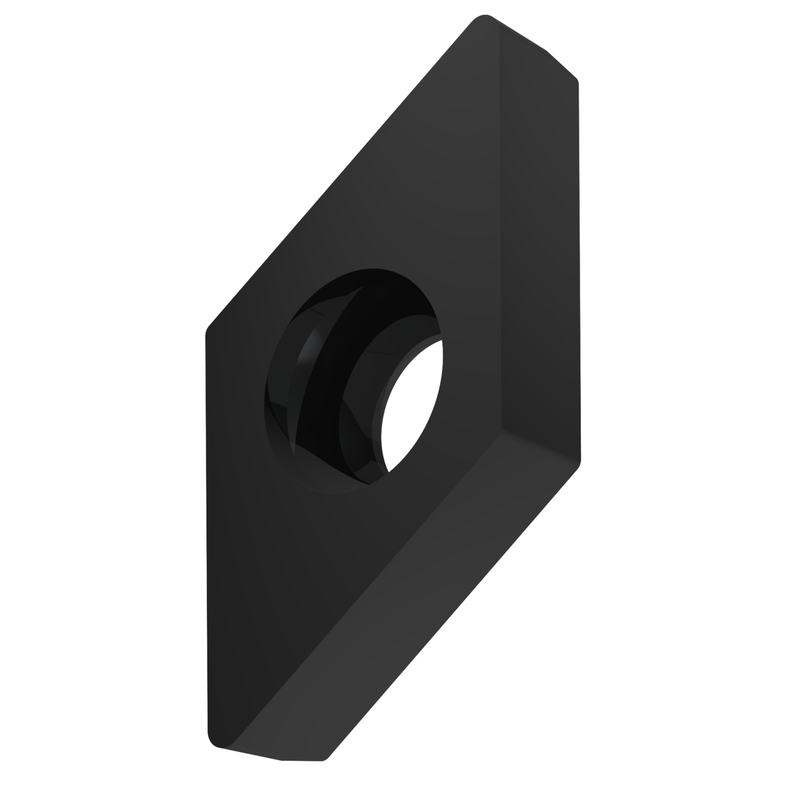

DCMW 21.51:T5405
DCMW 21.51:T5405
DCMW 21.51:T5405
DCMW 21.51:T5405

DCMW 21.51:T5405

UGC DOR8985033
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.83 CAD - $11.83 CAD
$11.83 CAD
$11.83 CAD - $11.83 CAD
$11.83 CAD

Vendu en lots de : 10

Plaquette positive simple face, D - rhomboïde angle de 55° inclus, taille 7 avec un rayon de bec de 0,4 mm. La combinaison de brise-copeaux .CMW est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle convient également de manière conditionnelle aux matériaux durs. Le substrat T5405 est revêtu de MT-CVD, à base de WC-Co. Il convient aux matériaux suivants : K - Fonte (pièces moulées en alliages de fer et de carbone avec une teneur en carbone > 2 %) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DCMW 21.51:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8985033
Product FamilyDCMW
Insert Geometry
Insert DesignCMDT
Insert Shape Code (SC)D - angle inclus de 55° rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Tool DesignCC
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985033
EAN3603604774406
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
DCMW 21.51:T5405 — Line Drawing PDF Download
