DCMW 32.51:T5405
DCMW 32.51:T5405
DCMW 32.51:T5405
DCMW 32.51:T5405

DCMW 32.51:T5405

UGC DOR8985034
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.04 CAD - $16.04 CAD
$16.04 CAD
$16.04 CAD - $16.04 CAD
$16.04 CAD

Vendu en lots de : 10

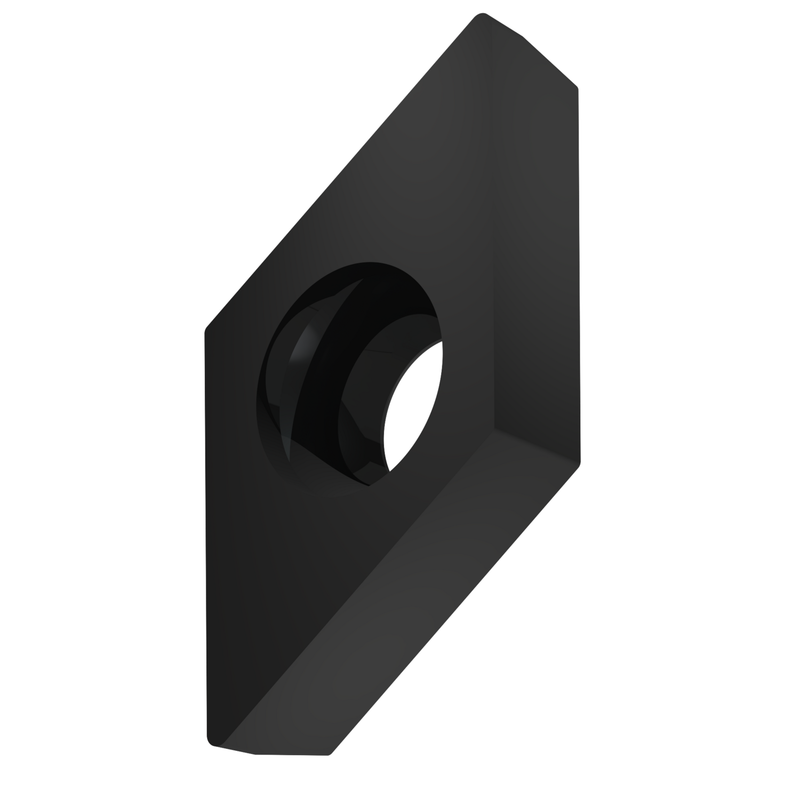

Plaquette de tournage positive simple face, D - rhomboïde angle inclus de 55°, taille 11 avec rayon de bec de 0,4 mm. La combinaison de brise-copeaux .CMW et d'une plaquette plate est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle est également conditionnellement adaptée aux matériaux durs. Le substrat T5405 en WC-Co, revêtu MT-CVD, convient aux matériaux : K - Fonte (pièces moulées en fer et alliages de carbone avec > 2 % de teneur en carbone) et aux coupes continues.

For more information about this product, click here

Identification
Ordering Code (ANSI)CMDW 32.51:T5405
Product Name (ISO)DCMW 32.51:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8985034
Product FamilyDCMW
Insert Geometry
Insert DesignCMGD
Insert Shape Code (SC)D - angle inclus de 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.114"
Depth of Cut Max — mm (APMX)2.9 mm
Tool Information
Tool DesignCC
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985034
EAN3603604774413
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
DCMW 32.51:T5405 — Line Drawing PDF Download
