DCMW 32.52:T5405
DCMW 32.52:T5405
DCMW 32.52:T5405
DCMW 32.52:T5405

DCMW 32.52:T5405

UGC DOR8985035
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.04 CAD - $16.04 CAD
$16.04 CAD
$16.04 CAD - $16.04 CAD
$16.04 CAD

Vendu en lots de : 10

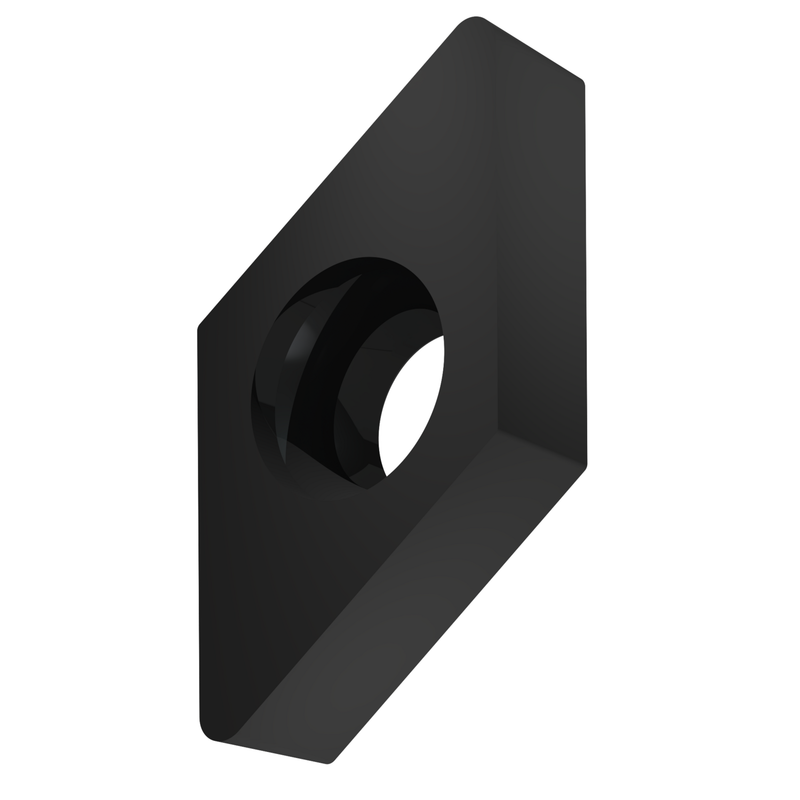

Plaquette de tournage positive simple face, D - rhomboïde, angle d'inclusion de 55°, taille 11 avec rayon de bec de 0,8 mm. La combinaison de brise-copeaux .CMW et la plaquette plate est conçue pour l'usinage moyen des fontes. Elle présente un angle de dépouille neutre sans facette de renforcement. Elle convient également de manière conditionnelle aux matériaux durs. Et le substrat T5405 en WC-Co, revêtu MT-CVD, convient aux matériaux : K - Fonte (moulages de fer et d'alliages de carbone avec une teneur en carbone > 2 %) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DCMW 32.52:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8985035
Product FamilyCMWD
Insert Geometry
Insert DesignDCMW
Insert Shape Code (SC)D - angle inclus rhombique de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.114"
Depth of Cut Max — mm (APMX)2.9 mm
Tool Information
Tool DesignCC
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985035
EAN3603604774420
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
DCMW 32.52:T5405 — Line Drawing PDF Download
