DNMA 441:T5405
DNMA 441:T5405
DNMA 441:T5405
DNMA 441:T5405

DNMA 441:T5405

UGC DOR8984962
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.97 CAD - $22.97 CAD
$22.97 CAD
$22.97 CAD - $22.97 CAD
$22.97 CAD

Vendu en lots de : 10

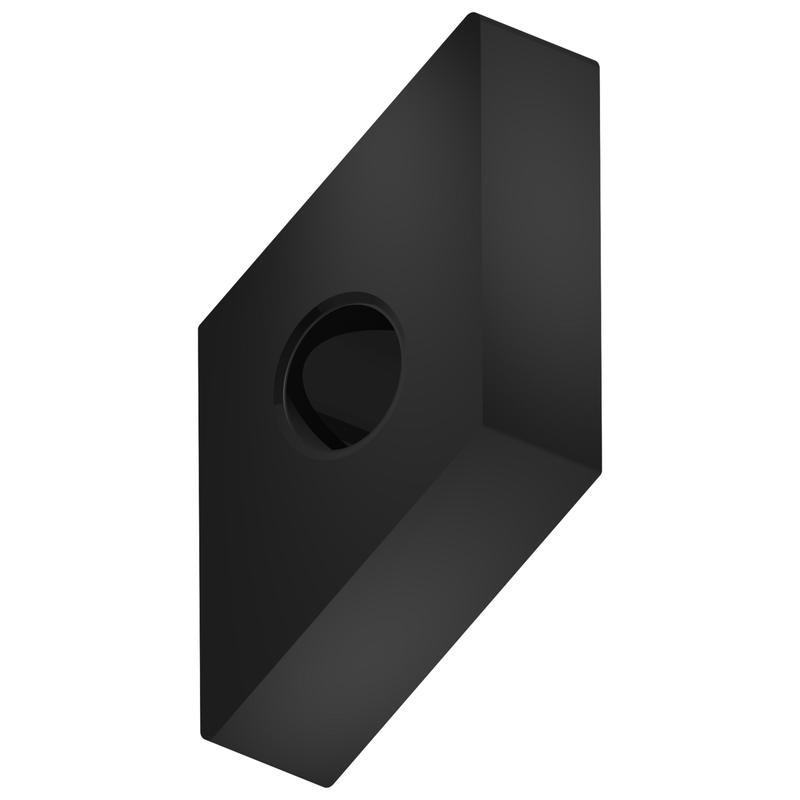

Plaquette de tournage négative double face, angle inclus en D - rhomboïde 55°, taille 15 avec rayon de coin de 0,4 mm. La combinaison de brise-copeaux .NMA, plaquette plate, est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans facette. Elle est également conditionnellement adaptée aux matériaux durs. Et le substrat T5405 à base de WC-Co, revêtu de MT-CVD, convient aux matériaux : K - fonte (pièces moulées en alliages de fer et de carbone avec une teneur en carbone > 2 %) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DNMA 441:T5405
GradeT5405
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number8984962
Product FamilyDNMA

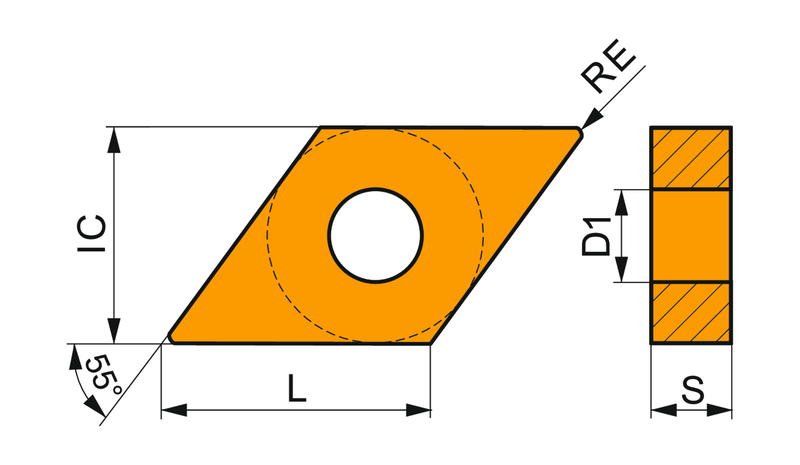

Insert Geometry
Insert DesignDNMA
Insert Shape Code (SC)D - angle fermé rhomboïdal 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.154"
Depth of Cut Max — mm (APMX)3.9 mm
Tool Information
Tool DesignJ/N
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984962
EAN3603604772693
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
DNMA 441:T5405 — Line Drawing PDF Download
