DNMA 443:T5405
DNMA 443:T5405
DNMA 443:T5405
DNMA 443:T5405

DNMA 443:T5405

UGC DOR8984964
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.97 CAD - $22.97 CAD
$22.97 CAD
$22.97 CAD - $22.97 CAD
$22.97 CAD

Vendu en lots de : 10

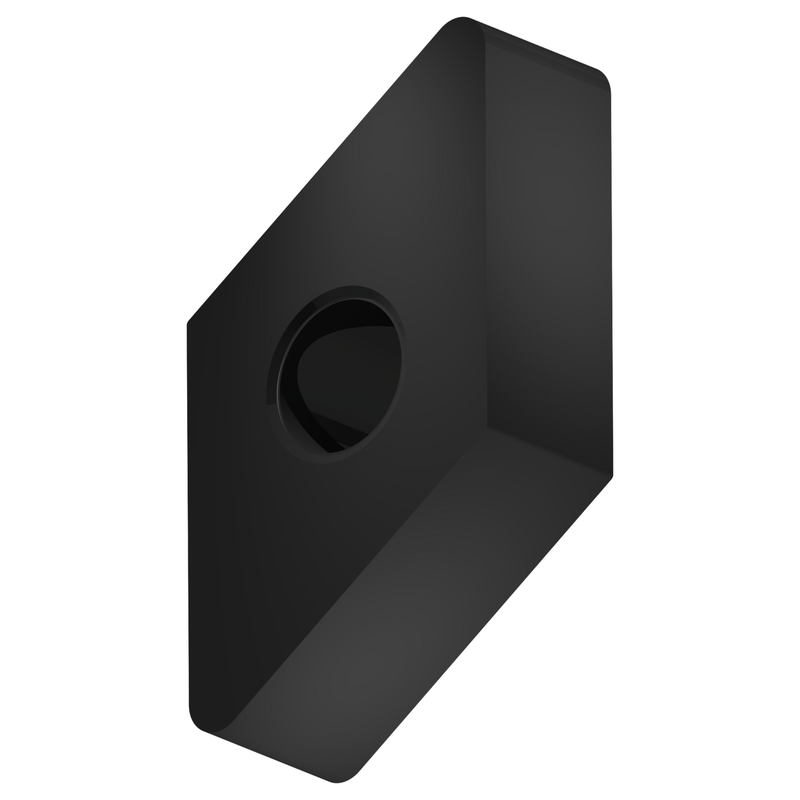

Plaquette négative double-face, D - losange angle inclus 55°, taille 15 avec rayon de coin 1,2 mm. La combinaison de brise-copeaux .NMA, plaquette plate est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle convient également de manière conditionnelle aux matériaux durs. et substrat T5405 revêtu MT-CVD, à base de WC-Co. convient pour les matériaux : K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DNMA 443:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8984964
Product FamilyDNMA

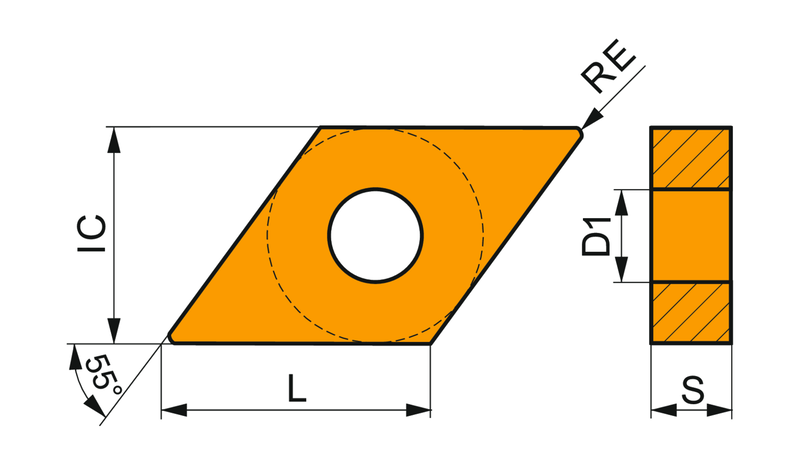

Insert Geometry
Insert DesignDNMA
Insert Shape Code (SC)D - angle compris de 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.154"
Depth of Cut Max — mm (APMX)3.9 mm
Tool Information
Tool DesignJ/N
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984964
EAN3603604772716
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
DNMA 443:T5405 — Line Drawing PDF Download
