DNMG 431-KM:T5405
DNMG 431-KM:T5405
DNMG 431-KM:T5405
DNMG 431-KM:T5405

DNMG 431-KM:T5405

UGC DOR8984965
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.21 CAD - $21.21 CAD
$21.21 CAD
$21.21 CAD - $21.21 CAD
$21.21 CAD

Vendu en lots de : 10

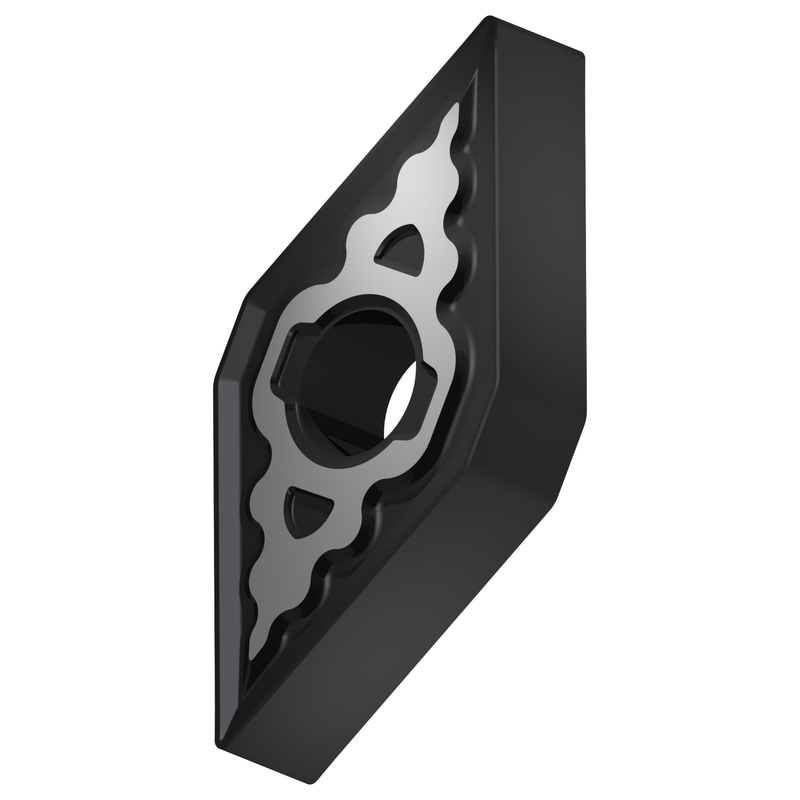

Plaquette négative double-face, D - losange 55° d'angle d'inclusion, taille 15 avec rayon de coin de 0,4 mm. La combinaison de brise-copeaux KM est polyvalente et constitue le premier choix pour l'usinage moyen des fontes. Elle présente un angle de coupe légèrement positif et un T-land stable et large. Elle convient également sous certaines conditions aux aciers et aux matériaux durs. Et un substrat T5405 en WC-Co, revêtu MT-CVD, convient aux matériaux : K - Fonte (alliages de fer et de carbone avec > 2 % de carbone) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DNMG 431-KM:T5405
GradeT5405
Chipbreaker (CBMD)KM
Product Number8984965
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle d'ouverture 55°, rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Tool DesignJ/N
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984965
EAN3603604772723
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
DNMG 431-KM:T5405 — Line Drawing PDF Download
