G13880.0
G13880.0
G13880.0
G13880.0

G13880.0

UGC DOR5973078
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,463.61 CAD - $1,463.61 CAD
$1,463.61 CAD
$1,463.61 CAD - $1,463.61 CAD
$1,463.61 CAD

Vendu en lots de : 1

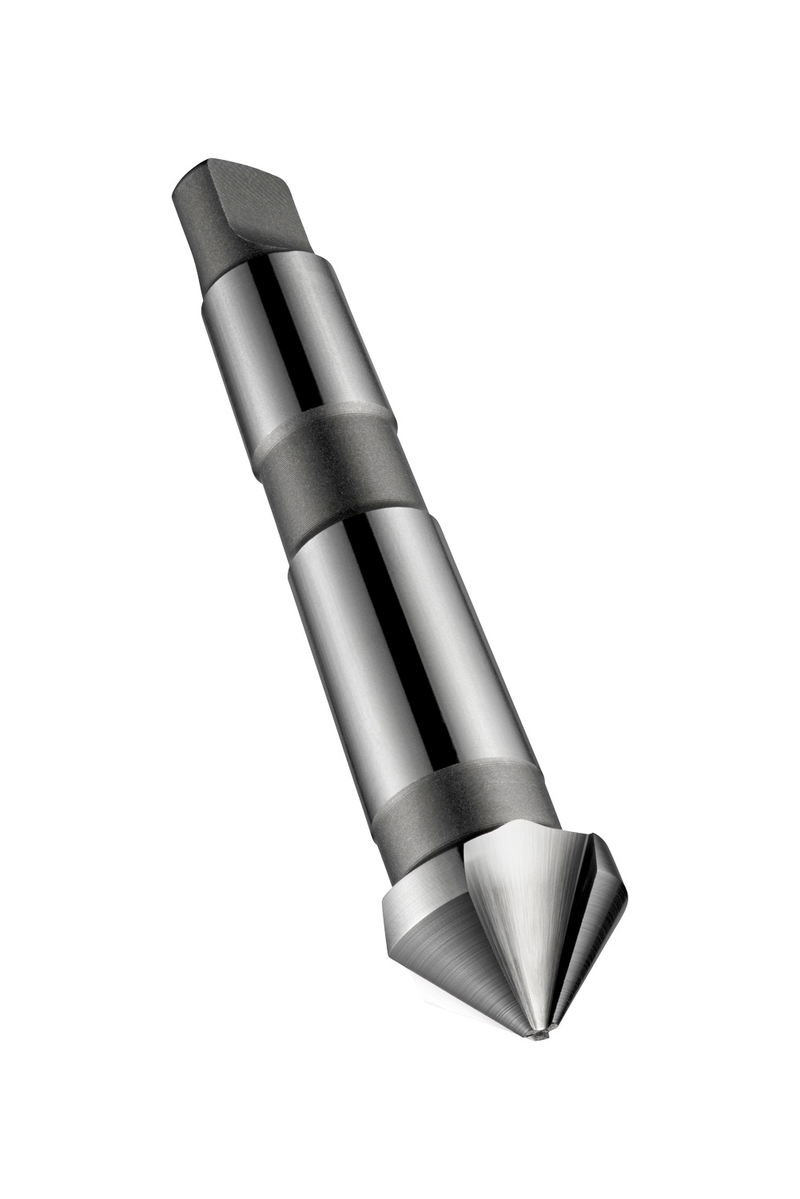

Fraise à chanfreiner à 3-dents, angle de chanfreinage de 90°, diamètre maximum de 80.00mm, longueur totale de 190mm et longueur de tête de 36mm et cône Morse MT 4, selon la norme DIN 335 D pour la réalisation de sièges coniques pour vis à tête conique ISO métriques avec un diamètre de trou minimum de 22.00mm, en HSS avec finition brillante standard pour l'usinage des aciers de décolletage et des aciers au carbone, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G13880.0
GradeLumineux
Product Number5973078
Product FamilyG138
Dimensions
Overall Length — in (OAL)7.4803"
Overall Length — mm (OAL)190.0 mm
Flute Length — in (LCF)1.4173"
Flute Length — mm (LCF)36.0 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankQueue conique Morse
StandardDIN 335 D
Reference Numbers
EDP Number108994
EAN7320760108994
File Type Download

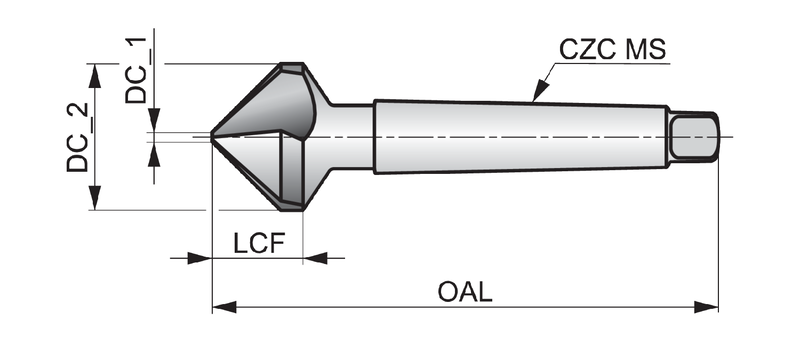

G13880.0 — Line Drawing PDF Download
