LNGF 361220-PM:6630
LNGF 361220-PM:6630
LNGF 361220-PM:6630
LNGF 361220-PM:6630

GNL 361220-PM:6630

UGC DOR6752848
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.14 CAD - $72.14 CAD
$72.14 CAD
$72.14 CAD - $72.14 CAD
$72.14 CAD

Vendu en lots de : 5

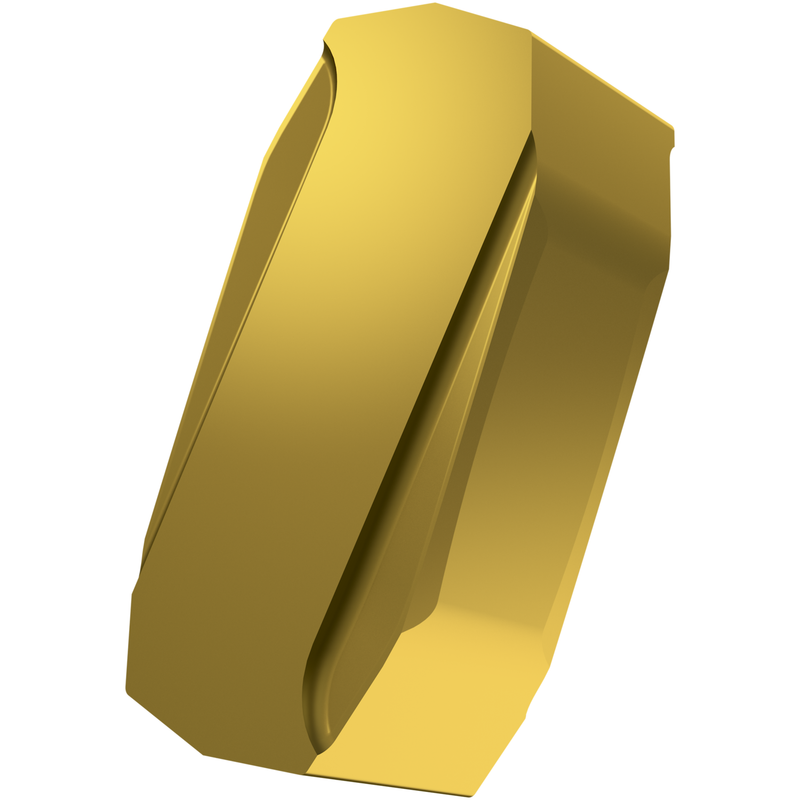

Plaquette bi-face négative pour le barre-tournage, rectangulaire, d’une longueur de 36,5 mm, épaisseur de 12 mm pour une profondeur de coupe de 2 mm, précision d’indexage selon la classe de tolérance ISO G, brise-copeaux PM, en nuance 6630, un carbure WC-Co à gradient fonctionnel à revêtement MT-CVD, dans la plage ISO P15-P35, pour les aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)GNL 361220-PM:6630
Product Name (ISO)LNGF 361220-PM:6630
Grade6630
Chipbreaker (CBMD)MP
Product Number6752848
Product FamilyLNGF 36

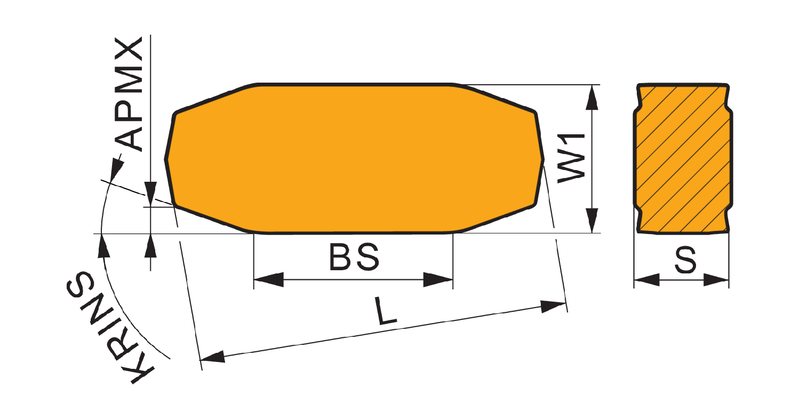

Insert Geometry
Insert DesignLNGF 36
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.472"
Insert Thickness — mm (S)12.0 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6752848
EAN3603602882141
File Type Download
GNL 361220-PM:6630 — Line Drawing PDF Download
