CNMM 643-OR:T9315
CNMM 643-OR:T9315
CNMM 643-OR:T9315
CNMM 643-OR:T9315

CNMM 643-OR:T9315

UGC DOR6754108
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.26 CAD - $30.26 CAD
$30.26 CAD
$30.26 CAD - $30.26 CAD
$30.26 CAD

Vendu en lots de : 10

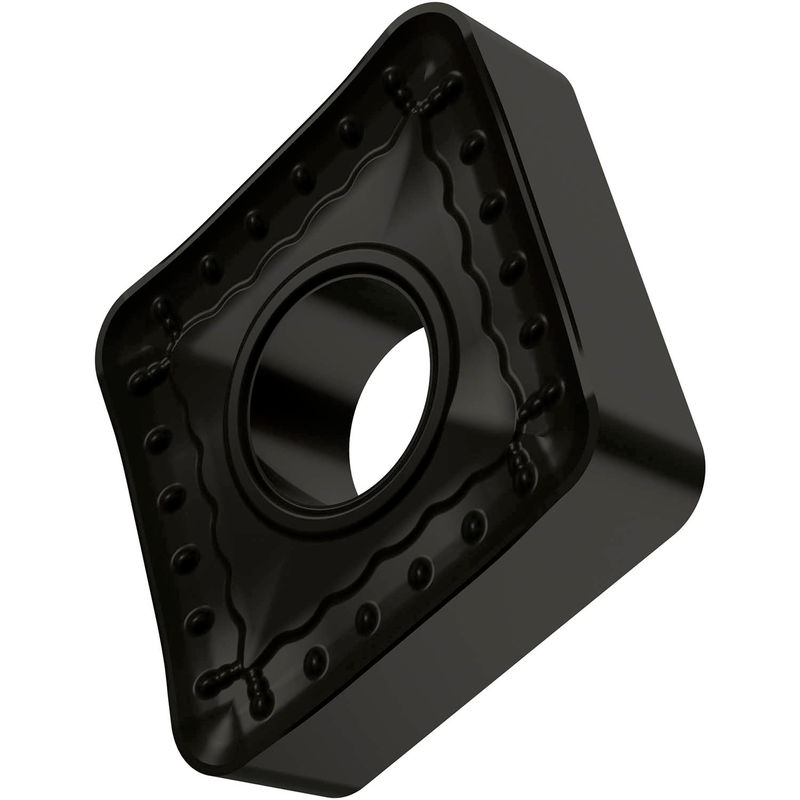

Plaquette de tournage négative double face, rhomboïde à 80° avec un diamètre de cercle inscrit de 3/4", 1/4" d'épaisseur, rayon de bec de 3/64" et précision d'indexation selon la classe de tolérance ISO M, brise-copeaux OR, en nuance T9315, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P25, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 643-OR:T9315
Product Name (ISO)CNMM 190612E-OR:T9315
GradeT9315
Chipbreaker (CBMD)OU_
Product Number6754108
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number6754108
EAN3603602894748
File Type Download
CNMM 643-OR:T9315 — Line Drawing PDF Download
