WNMF 201380-PM-S01:T9226
WNMF 201380-PM-S01:T9226
WNMF 201380-PM-S01:T9226
WNMF 201380-PM-S01:T9226

WNMF 201380-PM-S01:T9226

UGC DOR6931836
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$125.00 CAD - $125.00 CAD
$125.00 CAD
$125.00 CAD - $125.00 CAD
$125.00 CAD

Vendu en lots de : 3

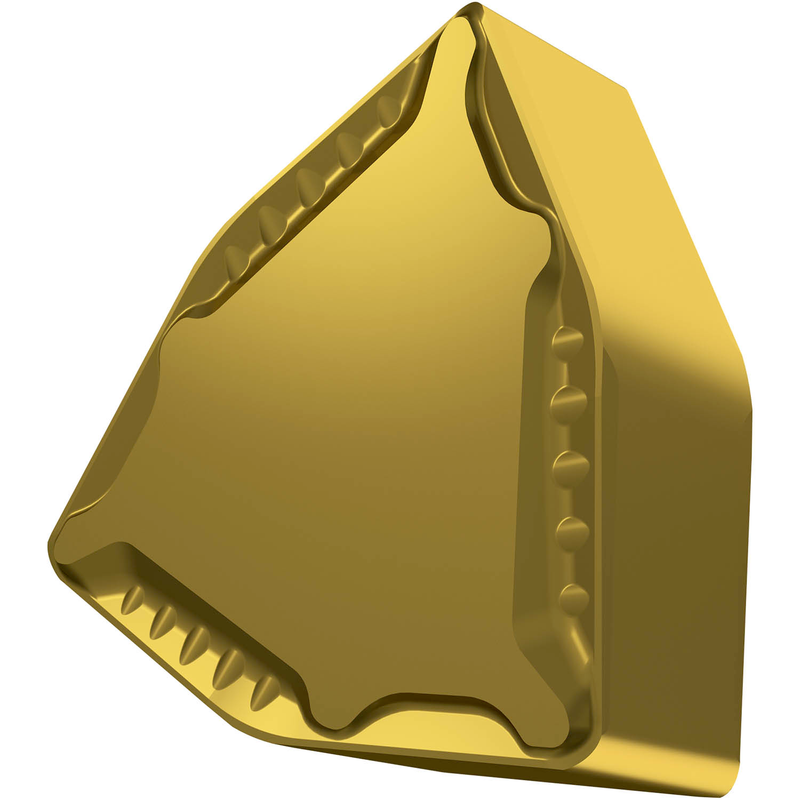

Plaquette négative double face pour barpeeling, trigon de 80° avec diamètre du cercle inscrit de 31,75 mm, épaisseur de 13 mm pour une profondeur de coupe de 8 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux PM avec préparation de l'arête de coupe S01, en nuance T9226, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour aciers à haute résistance

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMF 201380-PM-S01:T9226
GradeT9226
Chipbreaker (CBMD)PM-S01
Product Number6931836
Product FamilyFNMN

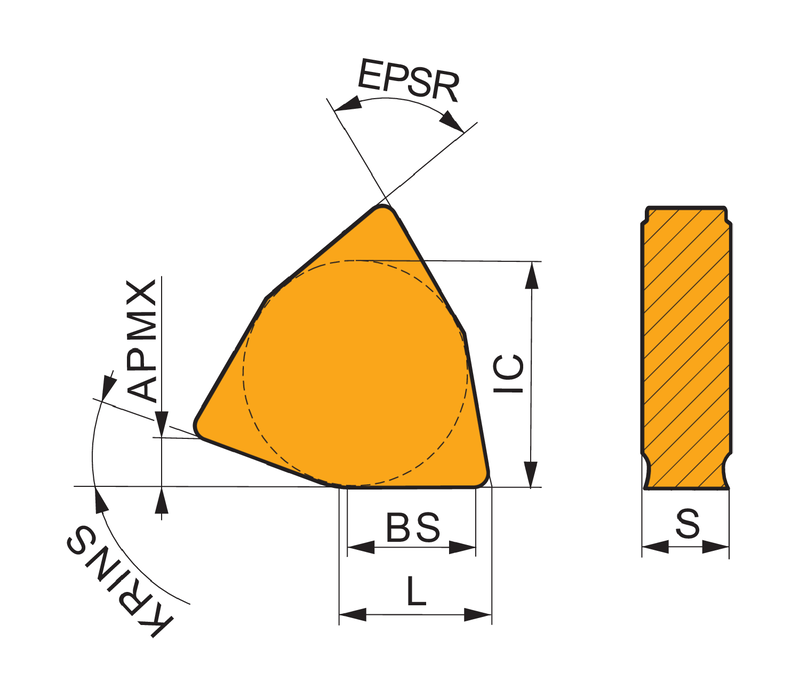

Insert Geometry
Insert DesignFNMN
Insert Shape Code (SC)W - trigone
Inscribed Circle Dia. — in (IC)1.25"
Inscribed Circle Dia. — mm (IC)31.75 mm
Insert Thickness — in (S)0.512"
Insert Thickness — mm (S)13.0 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6931836
EAN3603603078840
File Type Download
WNMF 201380-PM-S01:T9226 — Line Drawing PDF Download
